Nanopi R6S Mini Router OpenWRT LPDDR4X Single Board Computer with Three Gbps Ethernet Ports Based in Rockchip RK3588S Soc for IOT NAS Smart Home Gateway Support Debian Ubuntu (8GB RAM +32GB eMMC)

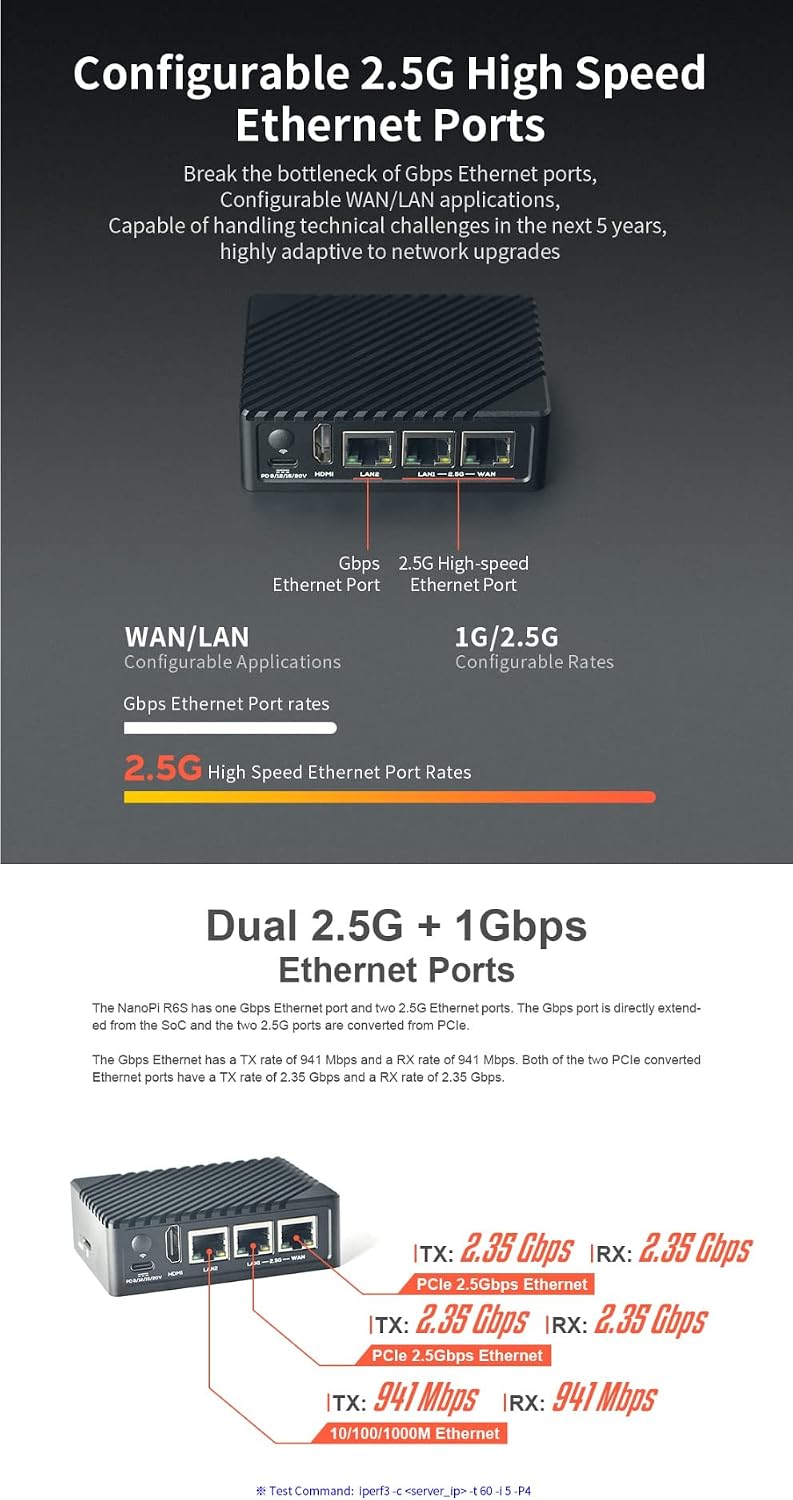

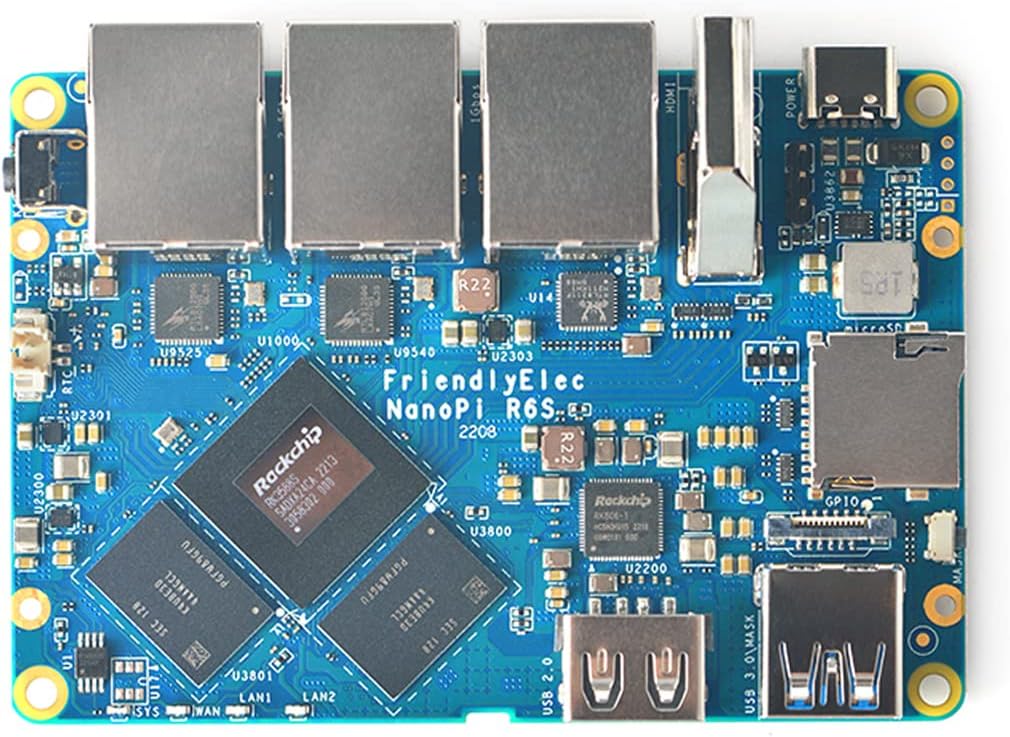

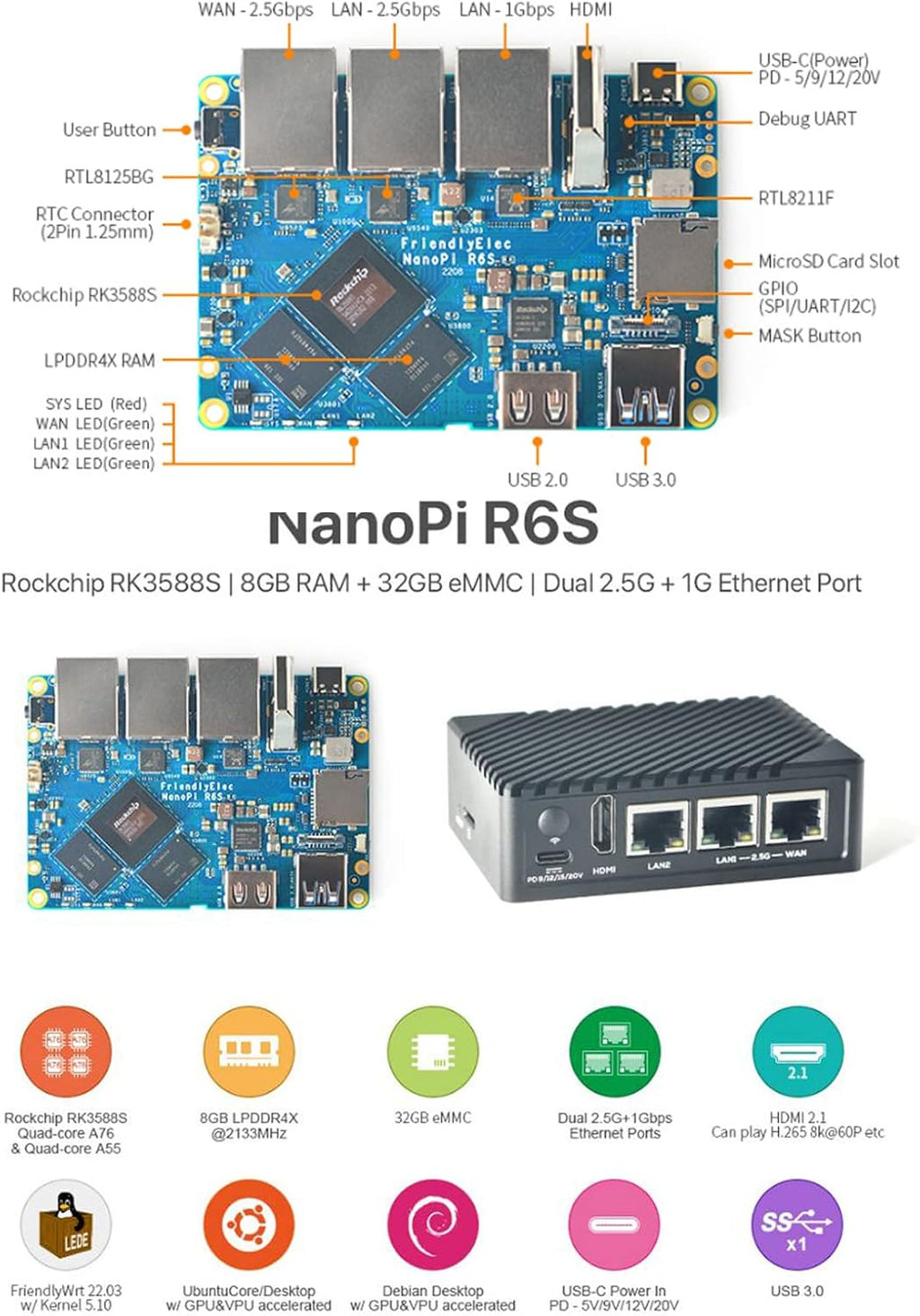

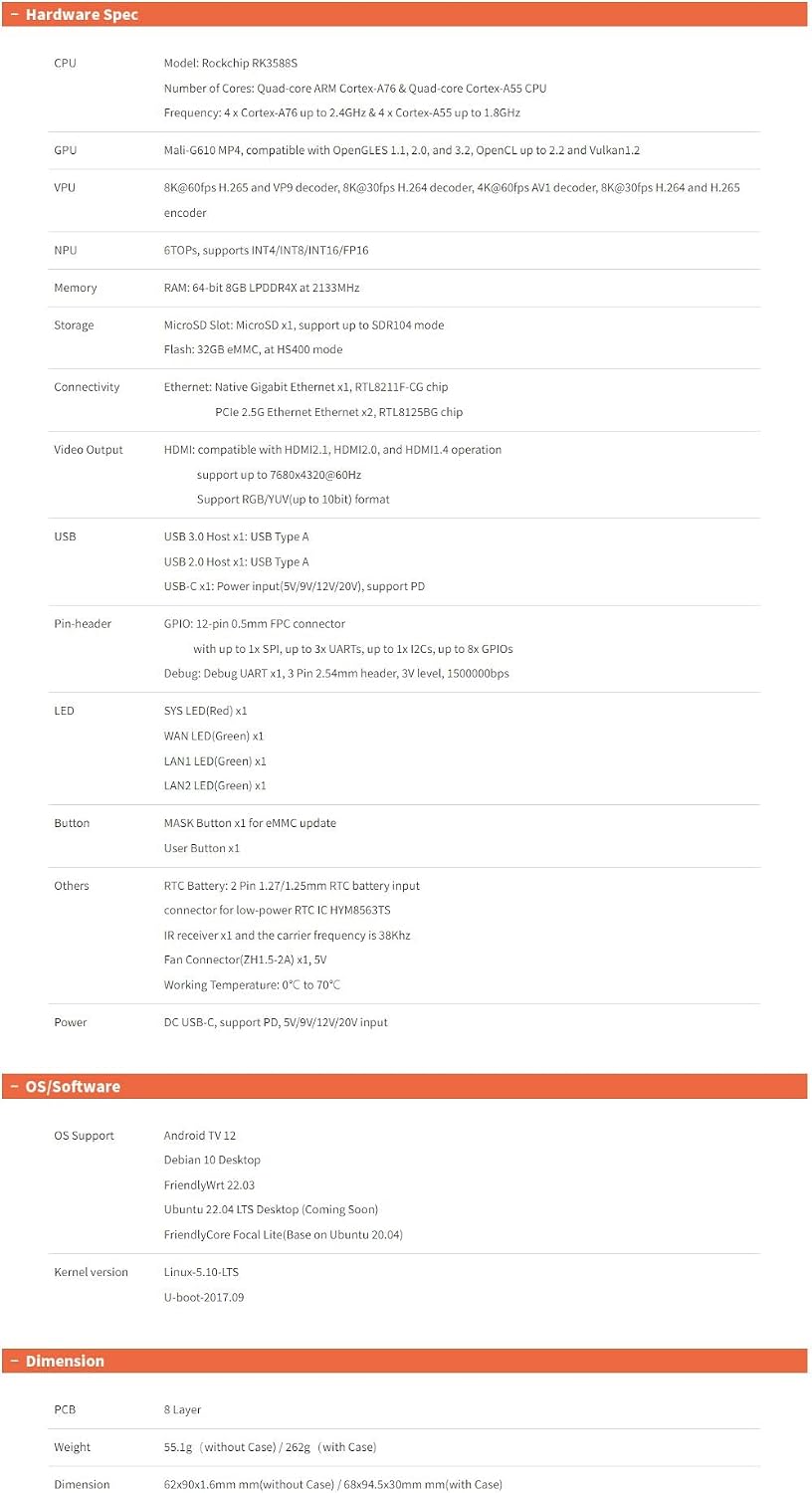

NanoPi R6S ('R6S' for short) is an open source high-performance all-in-one edge computing platform with dual 2.5G and 1 Gigabit Ethernet ports. It uses Rockchip RK3588S as the main control processor, is equipped with 8GB LPDDR4x memory, and 32GB eMMC flash memory, supports running various systems such as FriendlyWrt, Android, Debian and Ubuntu, and supports GPU and VPU acceleration.-Specification-SoC: Rockchip RK3588SCPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder 8K@30fps H.264 and H.265 encoderNPU: 6TOPs, supports INT4/INT8/INT16/FP16RAM: 64-bit 8GB LPDDR4X at 2133MHzFlash: 32GB eMMC, at HS400 mode; MicroSD: support up to SDR104 modeEthernet: one Native Gigabit Ethernet, and two PCIe 2.5G EthernetUSB: one USB 3.0 Type-A and one USB 2.0 Type-AHDMI:compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operationsupport up to 7680x4320@60HzSupport RGB/YUV(up to 10bit) formatGPIO:12-pin 0.5mm FPC connector with up to 1x SPI, up to 3x UARTs, up to 1x I2Cs, up to 8x GPIOsDebug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bpsLEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)Power supply: USB-C, support PD, 5V/9V/12V/20V inputPCB：8 LayerWeight：55.1g（without Case)Dimension：62 x 90 x 1.6 mm (without Case)Ambient Operating Temperature: 0℃ to 70℃-OS Support-Android TV 12；Debian 10 DesktopFriendlyWrt 22.03；FriendlyCore Focal Lite(Base on Ubuntu 20.04)Ubuntu 22.04 LTS Desktop (Coming Soon)Kernel version：Linux-5.10-LTS；U-boot-2017.09-Package Content-1x Nanopi R6S 8GB+32GB eMMC Single

Features & Specs

• Compatible Devices : Personal Computer
• Connectivity Technology : Ethernet, HDMI, USB, Wi-Fi
• Memory Storage Capacity : 32 GB

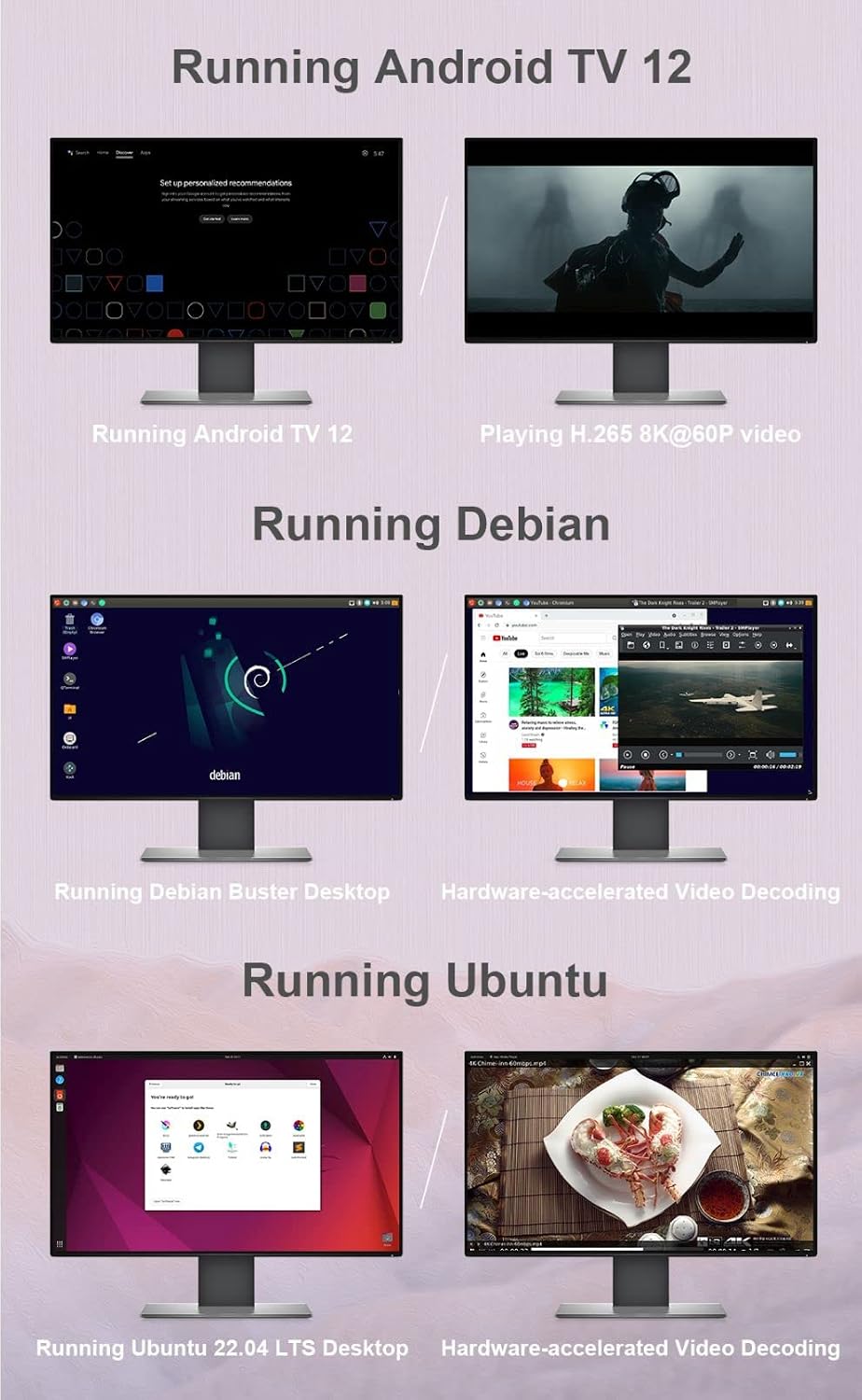

• Operating System : Android TV 12, Debian 10 Desktop, FriendlyCore Focal Lite(Base on Ubuntu 20.04), FriendlyWrt 22.03, Ubuntu 22.04 LTS Desktop (Coming Soon)
• Processor Brand : Rockchip RK3588S
• Processor Count : 8
• Processor Speed : 2.4E+3 MHz
• RAM Memory Installed : 8 GB
• RAM Memory Technology : LPDDR4X
• Total Usb Ports : 2
• Wireless Compability : 802.11a/b/g/n/ac

Item details

• ASIN : B0BL3G3KDR
• Brand : WayPonDEV
• Built-In Media : 1x Nanopi R6S 8GB+32GB eMMC Single
• Item Type Name : Mini Router
• Manufacturer : WayPonDEV
• Mfr Part Number : Mali-G610 MP4
• Model Name : Nanopi R6S Mini Router 8GB Single Board Computer
• Model Number : Nanopi R6S Mini Router OpenWRT
