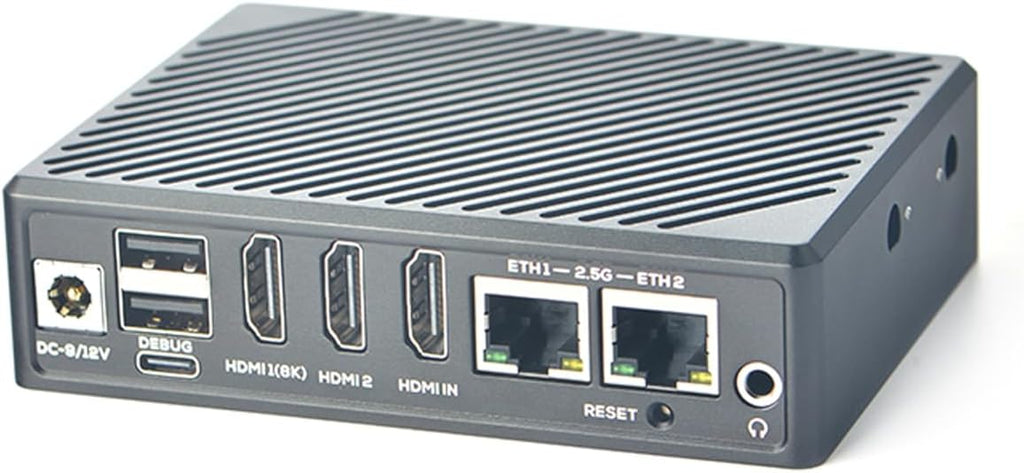

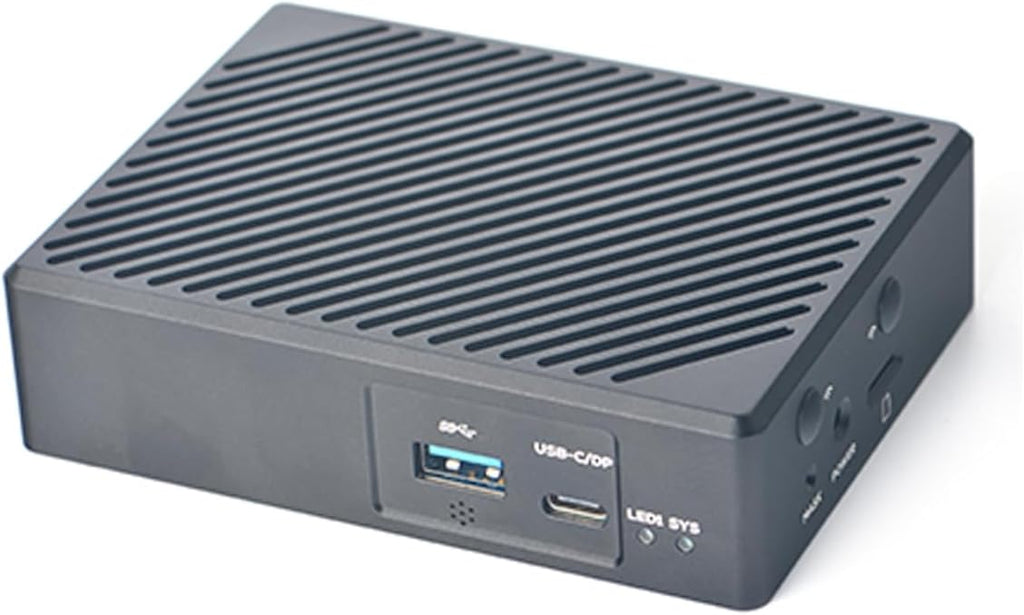

NanoPC-T6 LTS Mini Computer WiFi Router, Office Home Smart IoT Gateway

NanoPC-T6 LTS Mini Computer WiFi Router, Office Home Smart IoT Gateway, Rockchip RK3588 CPU 6Tops NPU, with 2X PCle 2.5G Ethernet Port for AI edge computing, Support M.2 NVMe SSD Module (4+64GB)

$75.38 $199.99

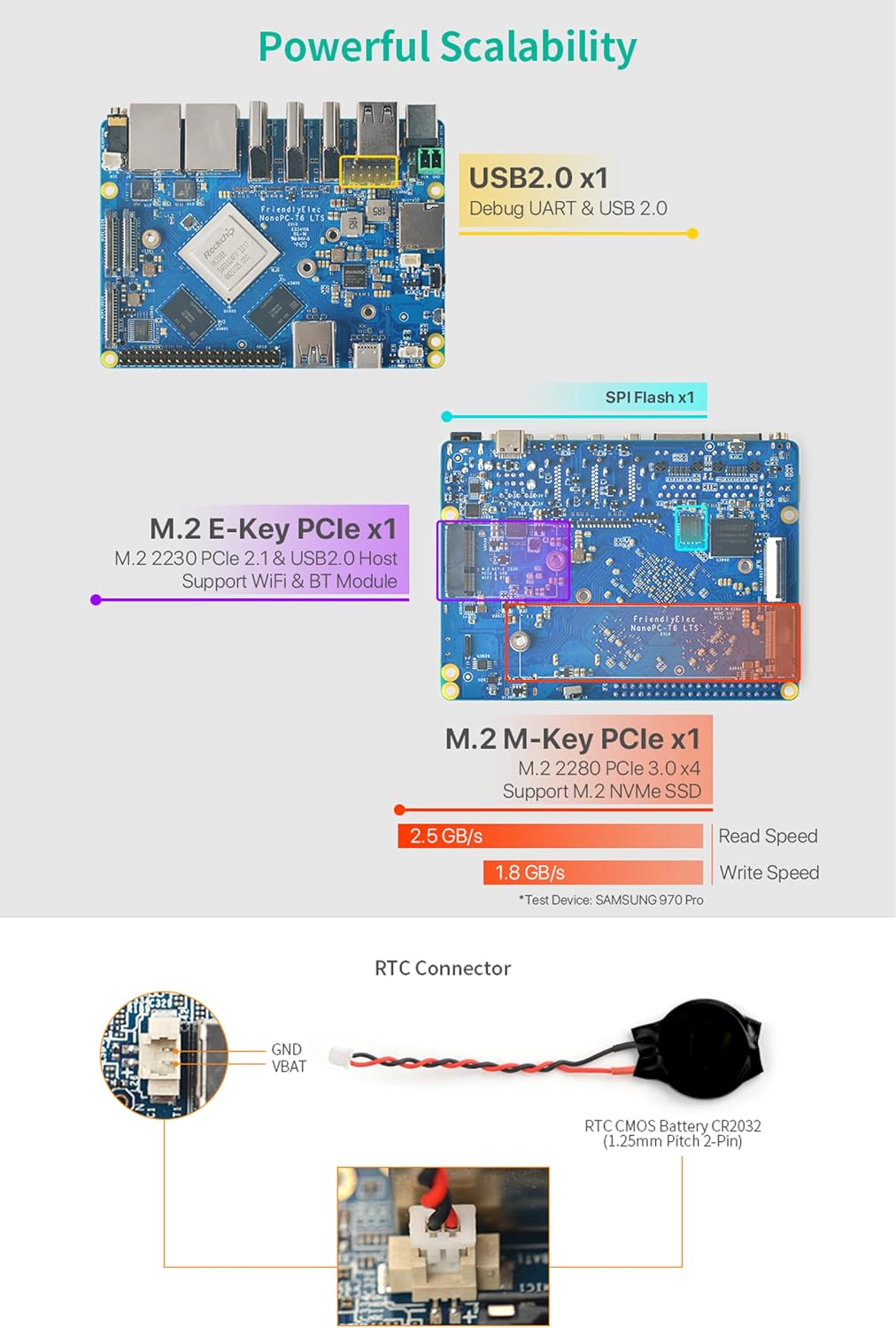

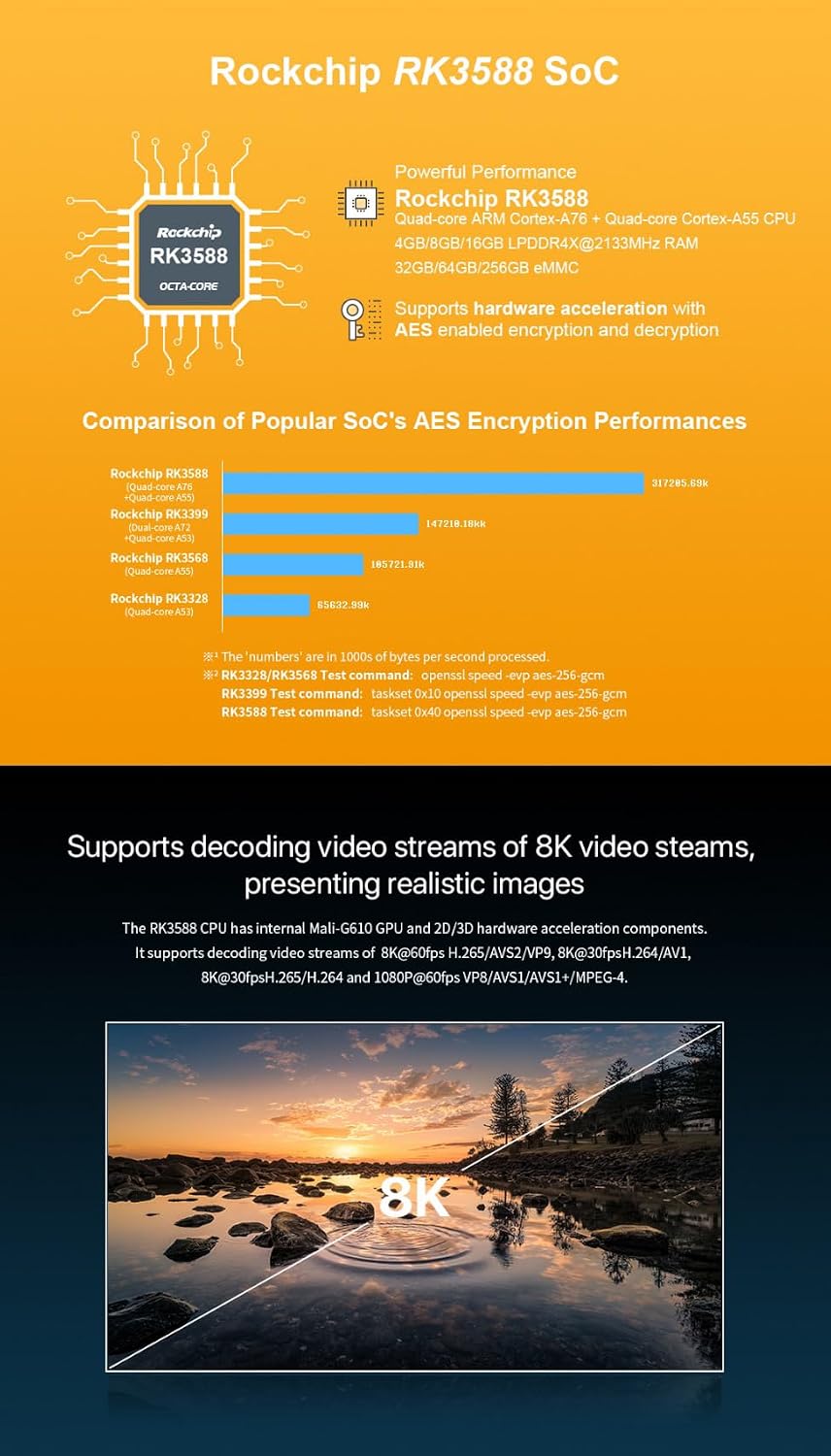

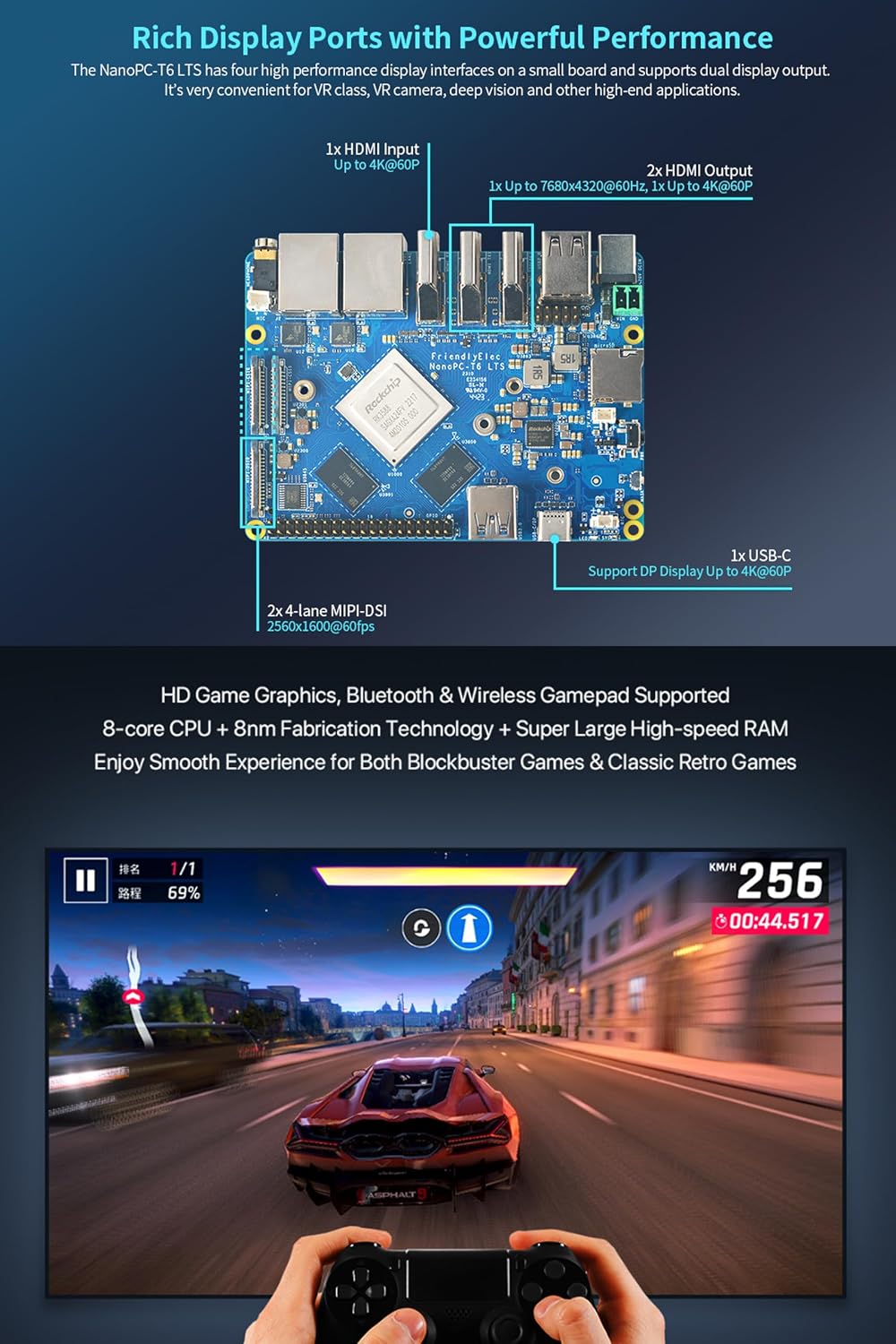

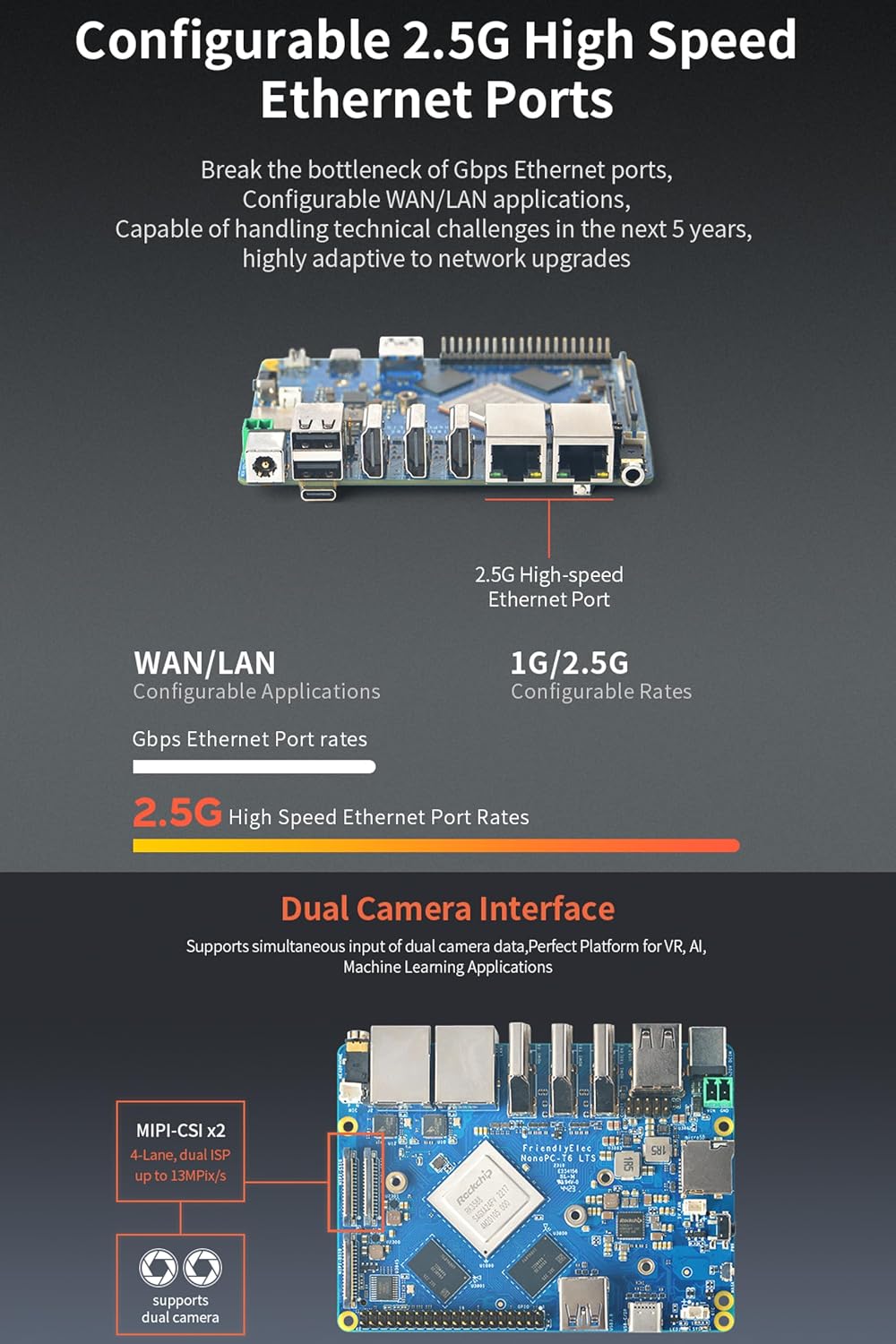

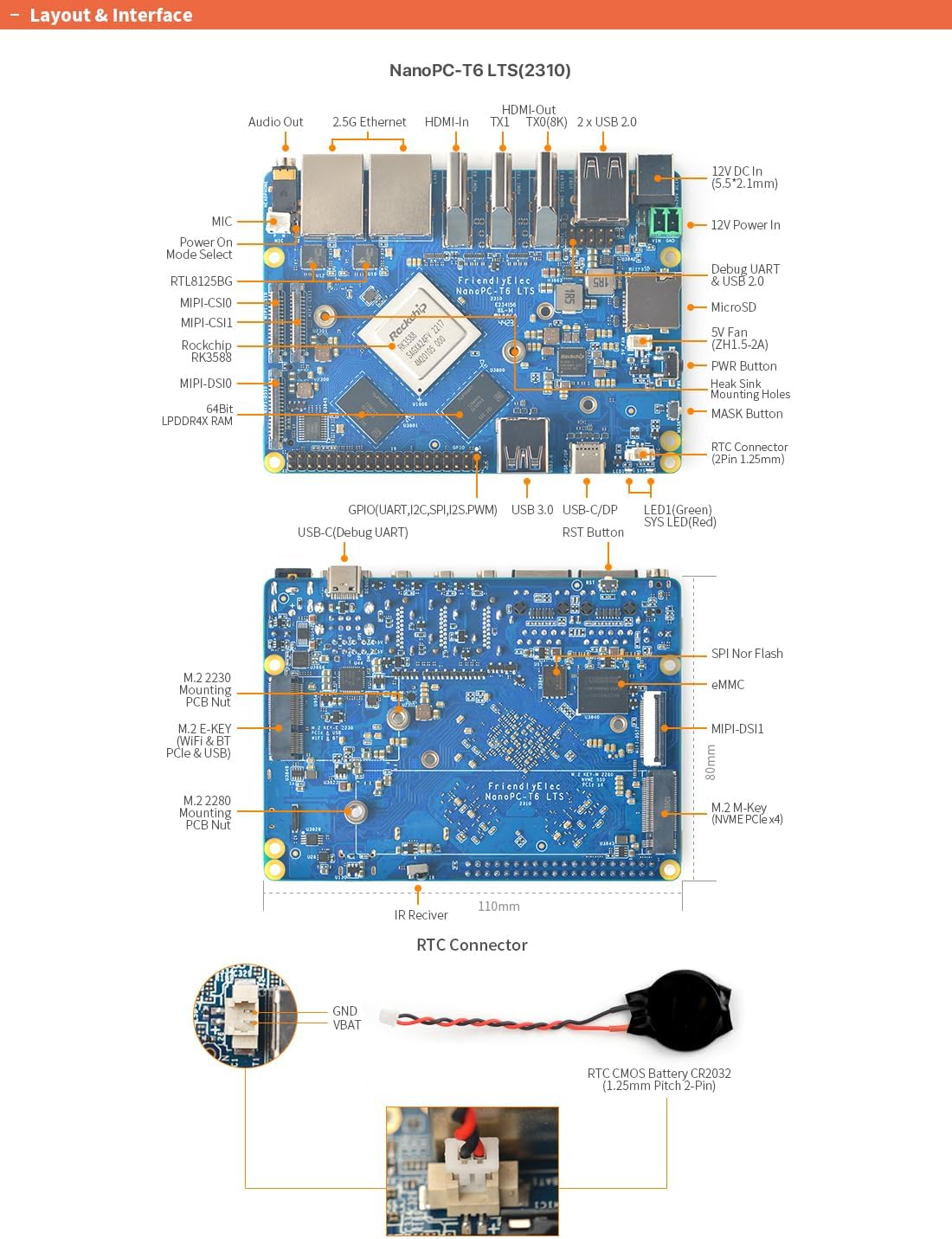

-Specification-SoC: Rockchip RK3588CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2.VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoderNPU: 6TOPs, supports INT4/INT8/INT16/FP16RAM: 64-bit 4/8/16GB LPDDR4X at 2133MHzFlash: 32/64GB eMMC, at HS400 mode，1 x MicroSD Slot: support up to SDR104 modePCle 3.0: 1 x M.2 M-Key, PCle 3.0 x4 for NVMe SSDs up to 2,500 MB/sOnboard M3 PCB nut for mounting M.2 2280 moduleConnectivity：Ethernet: 2 x PCle 2.5G Ethernet, RTL8125BG chipPCle 2.1: 1 x M.2 E-Key, PCle 2.1 x 1 and USB2.0 Host, supports M.2 WiFi and Bluetooth ModuleOnboard M3 PCB nutfor mounting M.2 2230 module.Video Input：1 x Standard HDMI input port, up to 4Kp602 x 4-lane MIPI-CSI, compatible with MIPI V1.2Video Output：2 x Standard HDMI output ports:compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operationone support displays up to 7680x4320@60Hz, another one support up to 4Kp60Support RGB/YUV(up to 10bit) format2 x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1USB：2 x USB 2.0,Type-A1 x USB 3.0,Type A1 x USB-C: Full function USB Type-C port, support DP display up to 4Kp60, USB 3.0Pin-header： GPIO: 40-pin 2.54mm header connector, up to 2 x SPIs,6x UARTs,1 x 12Cs,8x PWMs,2 x 12Ss,28 x GPIOsGPI02: 10-pin 2.54mm header connector including Debug UART(3.3VTTL) and 2 x USB 2.0 Host-OS Support-FriendlyWrt 21.02, FriendlyWrt 22.03, FriendlyCore Lite 20.04Android 12 Tablet, Android 12 TVDebian 10 Desktop, Debian 11 DesktopUbuntu 22.04 DesktopOpenMediaVaultKernel Version：Linux-5.10-LTS, U-boot-2017.09-Package Content-NanoPC-T6 Mini Wifi Router x1（with CNC Metal Case ）12V 2A Power Supply x1-Technical Support-Please click 'WayPonDEV' and ask a question. Please leave the message monica#smartfire.cn (f------>@) skype: monica_9122.Please leave the message in our forum by forum.youyeetoo.com/.

Additional details

Additional Features : Access Point Mode, Alexa Compatible, Guest Mode, Internet Security
Color : 4+64GB
Compatible Devices : Gaming Console, Personal Computer, Smart Television, Tablet
Hard Disk Description : SSD
Hard Disk Interface : PCIE x 4
Hardware Interface : HDMI
Item Dimensions : 4.52 x 3.38 x 1.18 inches
Item Weight : 390 Grams
Operating System : FriendlyWrt 21.02, FriendlyWrt 22.03
Personal Computer Design Type : Mini PC
Specific Uses For Product : Business/Education/Gaming, Everyday Use, Multimedia/Video Editing
Style Name : Professional/Industrial
Video Output : HDMI
Video Output Interface : HDMI

Connectivity

Connectivity Technology : Bluetooth, Ethernet, LTE, USB, Wi-Fi
Wireless Compability : 802.11.be, 802.11ac, 802.11ad, 802.11ax
Wireless Network Technology : LTE, Wi-Fi
Wireless Technology : Bluetooth, Cellular, Wi-Fi

Display

Aspect Ratio : 16:9
Display Resolution Maximum : 7680x4320
Display Type : External
Native Resolution : 7680 x 4320
Resolution : 1080P/4K/8K
Screen Size : 7 Inches

Graphics

Graphics Card Interface : PCI Express
Graphics Card Ram : 4 GB
Graphics Coprocessor : Mali-G610 MP4
Graphics Description : Integrated
Graphics Ram Type : DDR4 SDRAM

Input Devices

Human-Interface Input : Keyboard, Mouse
Keyboard Layout : QWERTY

Item details

ASIN : B0D1VKM11T
Brand : WayPonDEV

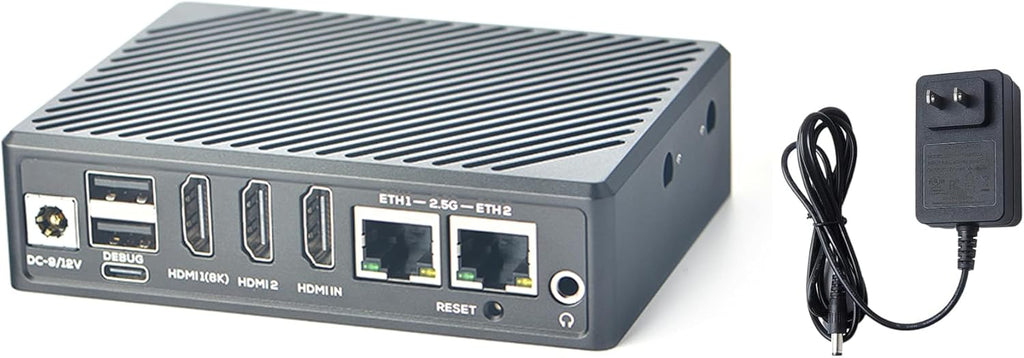

Built-In Media : Power Supply, Router
CPU Model Number : Rockchip RK3588
Manufacturer : WayPonDEV
Model Name : NanoPC-T6 LTS Computer Mini WiFi Router
Model Number : NanoPC-T6 LTS Mini WiFi Router
Processor Brand : ARM
Unit Count : 1 Count
Warranty Description : WayPonDEV Return Policy: You may return any new computer purchased from WayPonDEV that is 'dead on arrival', arrives damaged, or is still in unopened boxes for the refund within 30 days of purchase. WayPonDEV reserves the right to return ' Dead on Arrival' and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. WayPonDEV will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy.

Memory
