Fanless Mini PC 8505 with DDR5 M.2 Nvme 4*i226 2.5G LAN,USB,HDMI,DP,Type-c,Intel X710 4 * 10G SFP+,WiFi,Micro Router Appliance, AES-NI, OPNsense,NO RAM NO SSD

Product Highlight
8505 Model:

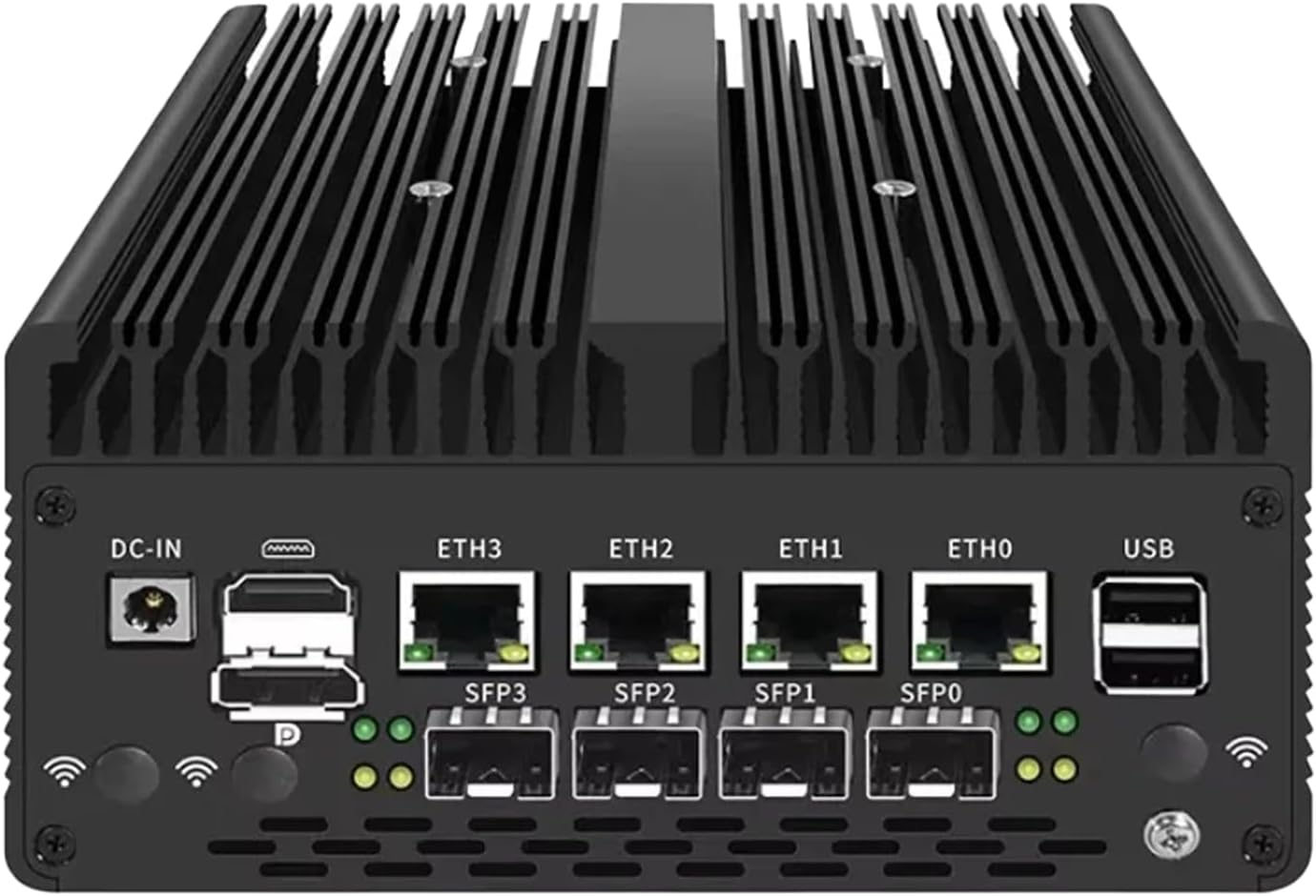

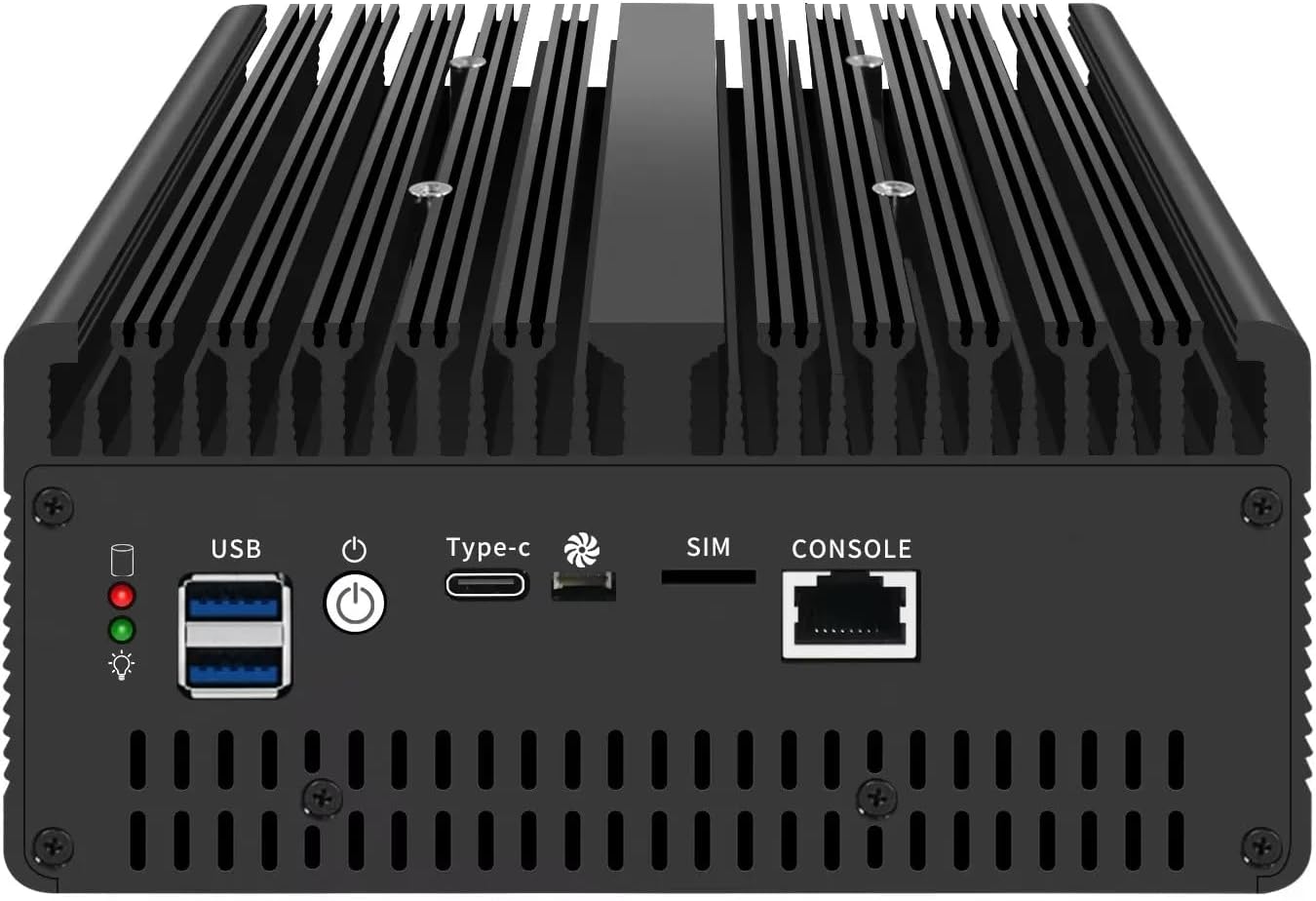

-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xType-C USB2.0, 1xSIM_5G slot, 1xRJ45 CONSOLE.

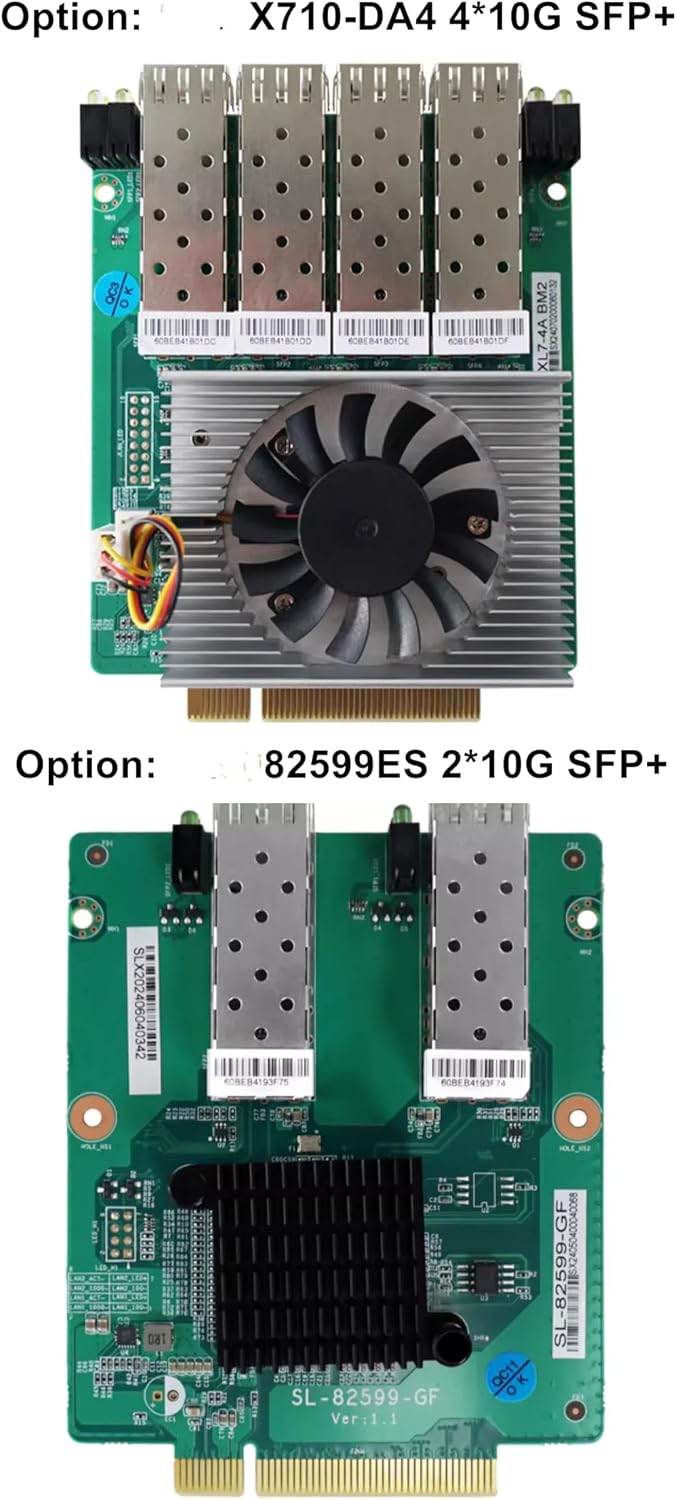

1*PCle x8 expansion slot PCIE3.0x4 signal optional: Intel X710-DA4 4*10G SFP+ module.
-2xDDR5 SODIMM non-ecc laptop ram slot, support max 64GB 4800MHz.
 -Support 1xM.2 NVME/PCIEx4 2280 SSD+1xSATA3.0.
-1xM.2 2230 slot, support PCIE3.0/USB/CNVI signal, 1xM.2 3052 slot, support PCIE3.0/USB signal.
-1xHDMI, 1xDP support 2x4K UHD video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Solid-built full aluminum shell with high tooth fins as heat-sink, efficient cooling performance, exquisite production craft on outside design.

Additional details

• Cooling Method : Fan
• Hard Disk Description : SSD
• Hard Disk Interface : Serial ATA
• Hardware Interface : Ethernet, HDMI, Sim Card, USB
• Item Weight : 4.5 Pounds
• Operating System : Linux, OPenWrt, Windows, ubuntu
• Personal Computer Design Type : Mini PC
• Specific Uses For Product : Everyday Use
• Style Name : Modern/Professional
• Video Output : HDMI
• Video Output Interface : HDMI, DisplayPort

Connectivity

• Connectivity Technology : Ethernet, USB, Wi-Fi

Display

• Aspect Ratio : 16:9
• Display Resolution Maximum : 3840x2160
• Native Resolution : 3840 x 2160
• Resolution : 3840 x 2160

Graphics

• Graphics Card Interface : Integrated
• Graphics Coprocessor : Intel UHD Graphics
• Graphics Description : Integrated
• Graphics Ram Type : L2 cache

Input Devices

• Human-Interface Input : Mouse
• Keyboard Description : Wired
• Keyboard Layout : QWERTY

Item details

• ASIN : B0F4D4HTVP
• Brand : UDPTCP
• Built-In Media : Water Cooling
• CPU Model Number : 8505
• Manufacturer : UDPTCP
• Model Name : H14-8505-4L+4SFP
• Model Number : H14-8505-4L+4SFP
• Processor Brand : Intel
• Unit Count : 1.0 Count
• Video Processor : Intel
• Warranty Description : One year warranty

Memory

• Memory Clock Speed : 4800 GHz
• Memory Slots Available : 2
• Memory Speed : 4800 MHz
• RAM Memory Technology : DDR5
• RAM Type : SODIMM
• Ram Memory Maximum Size : 64 GB

Ports

• Number of Component Outputs : 2
• Total Number of HDMI Ports : 1
• Total Usb Ports : 4

Processor

• CPU Model Speed Maximum : 4.4 GHz
• Processor Count : 1
• Processor Series : Pentium
• Processor Socket : FCBGA1744
• Processor Speed : 1.2 GHz
