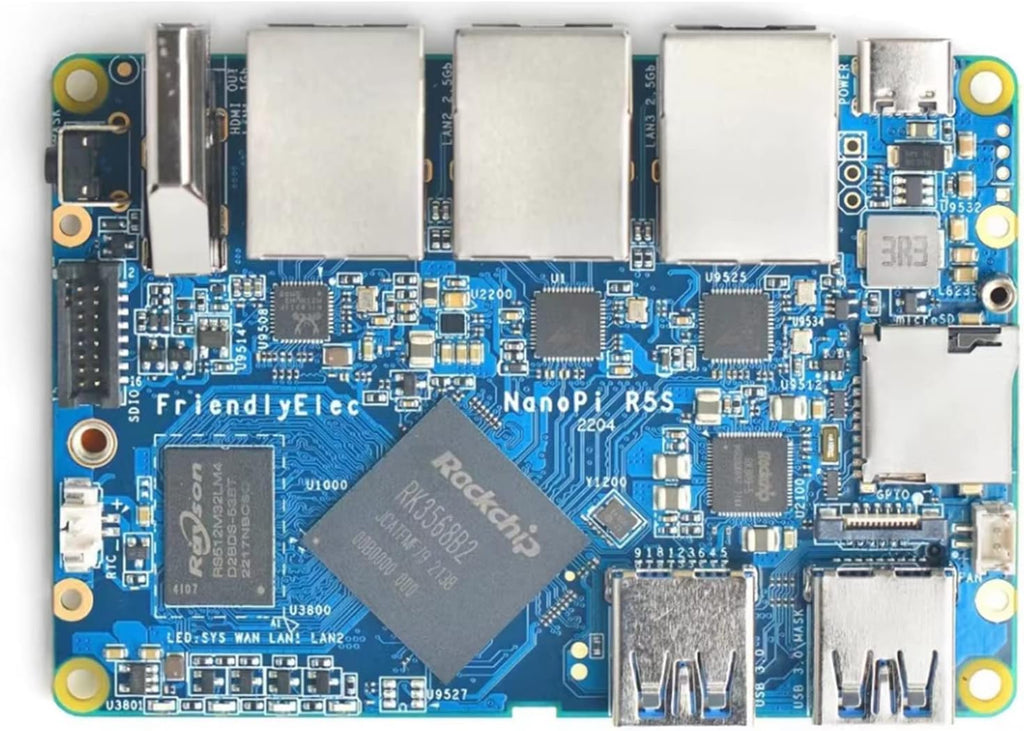

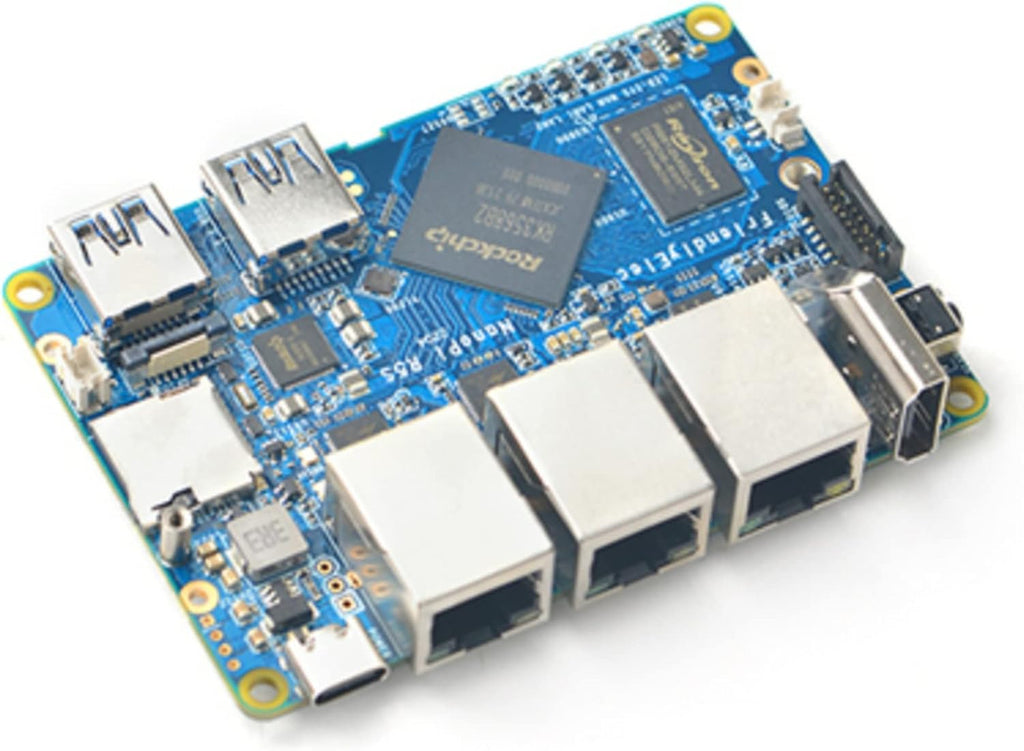

Nanopi R5S Router RK3568 Development Board OpenWRT A55 HDMI2.0 2.5G Gi

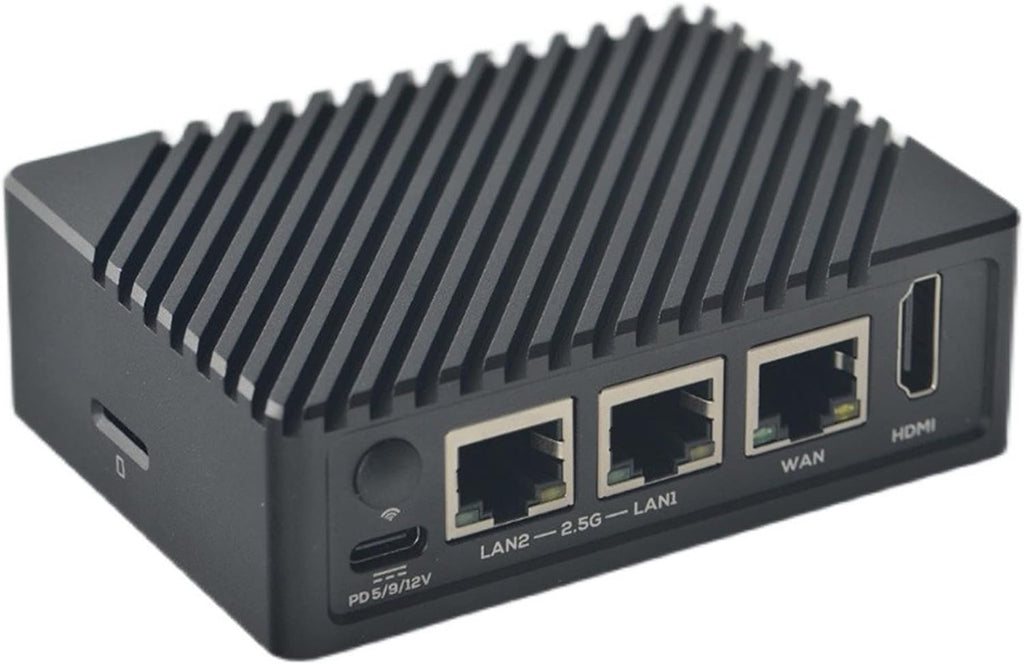

Nanopi R5S Router RK3568 Development Board OpenWRT A55 HDMI2.0 2.5G Gigabit Network Port Mini Router (4GB Mental case)

$55.22 $149.00

Introduction

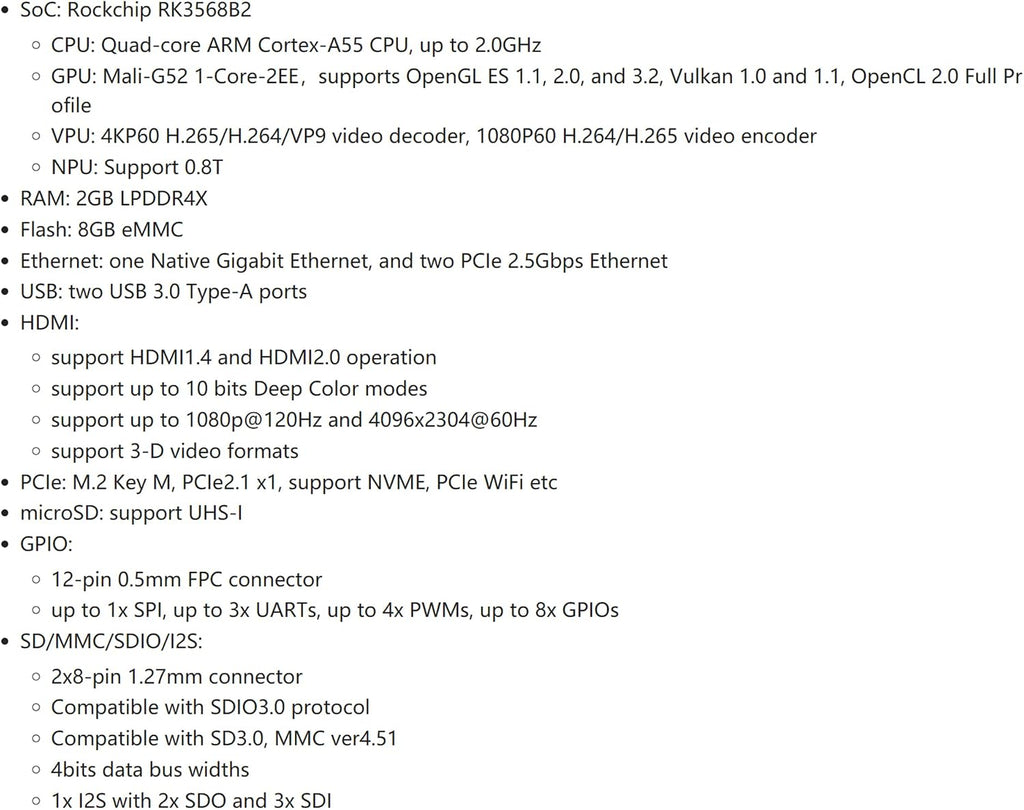

SoC: Rockchip RK3568B2
-CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz
-GPU: Mali-G52 1-Core-2EE，supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
-VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
-NPU: Support 0.8T

RAM: 2GB LPDDR4X
Flash: 8GB eMMC

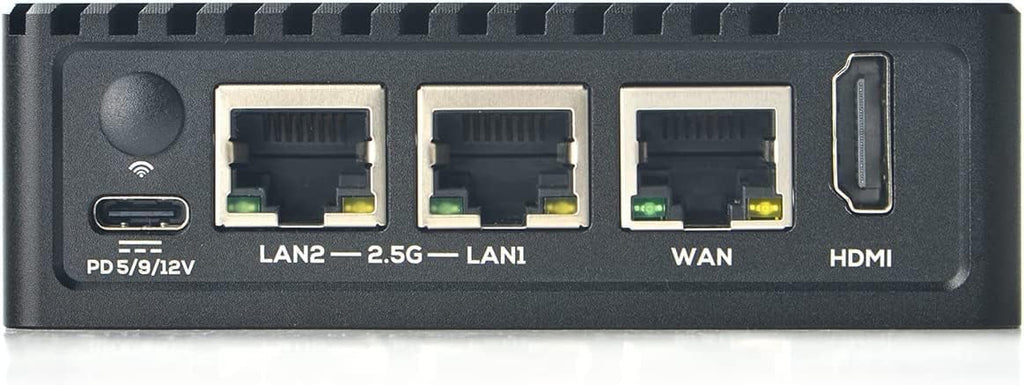

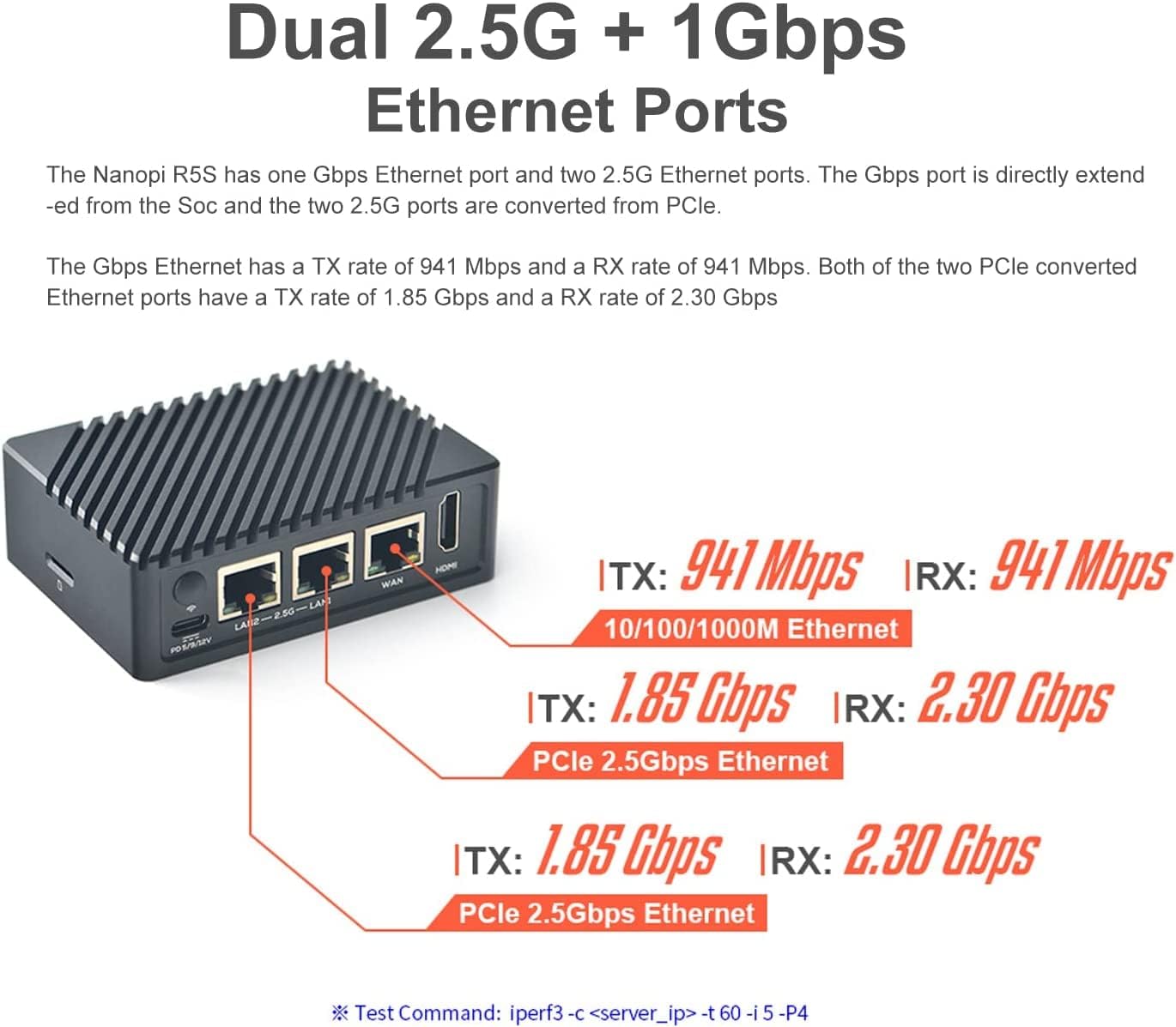

Ethernet: one Native Gigabit Ethernet, and two PCIe 2.5Gbps Ethernet
USB: two USB 3.0 Type-A ports

HDMI:
-support HDMI1.4 and HDMI2.0 operation
-support up to 10 bits Deep Color modes
-support up to 1080p@120Hz and 4096x2304@60Hz
-support 3-D video formats

PCIe: M.2 Key M, PCIe2.1 x1, support NVME, PCIe WiFi etc
microSD: support UHS-I

GPIO:
-12-pin 0.5mm FPC connector

-up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs

SD/MMC/SDIO/I2S:
-2x8-pin 1.27mm connector
-Compatible with SDIO3.0 protocol
-Compatible with SD3.0, MMC ver4.51
-4bits data bus widths
-1x I2S with 2x SDO and 3x SDI

Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)

others:
-2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
-MASK button for eMMC update
-one 5V Fan connector

Power supply: USB-C, support PD, 5V/9V/12V input

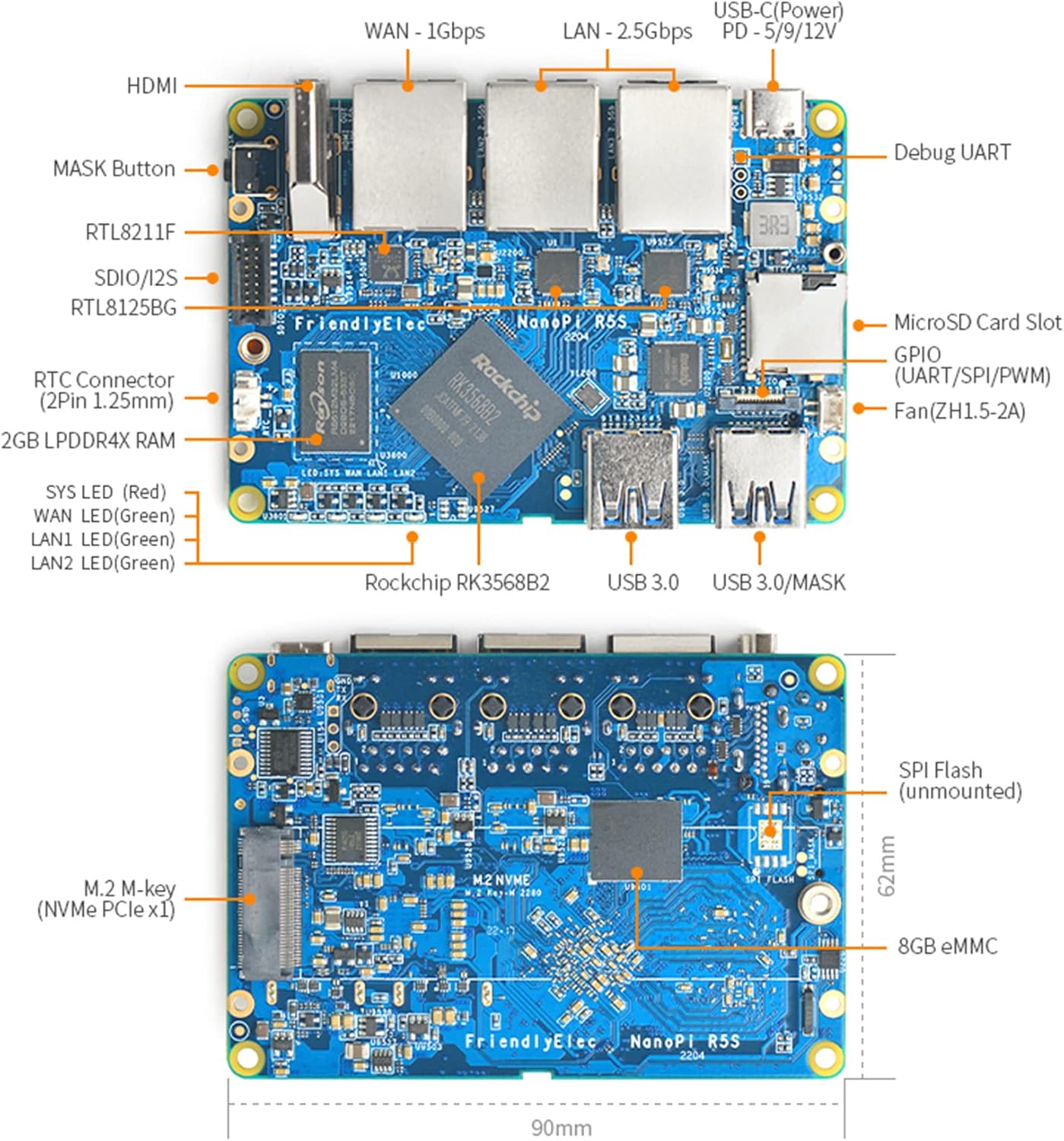

PCB: 8 Layer, 62x90x1.6mm
Ambient Operating Temperature: 0℃ to 70℃
