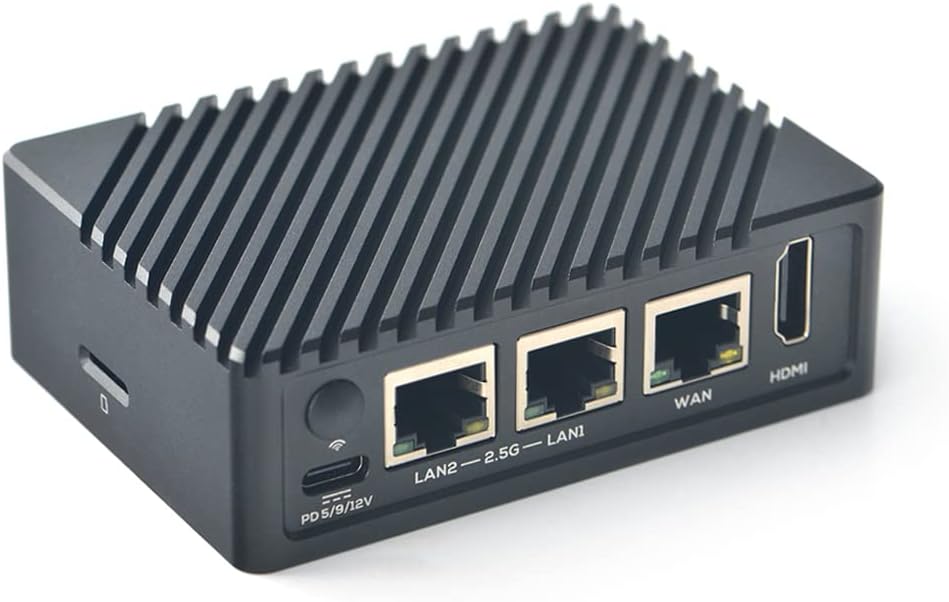

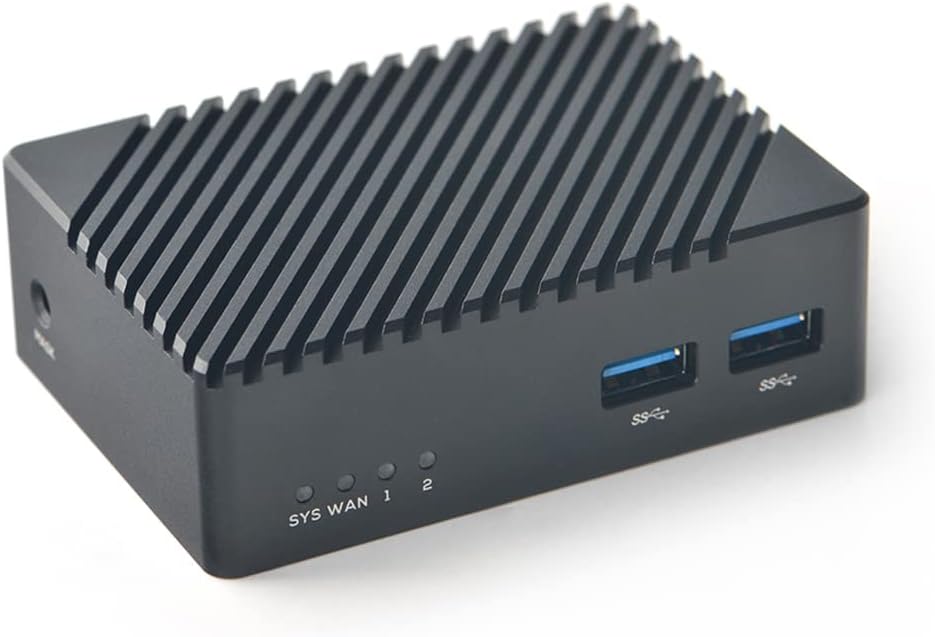

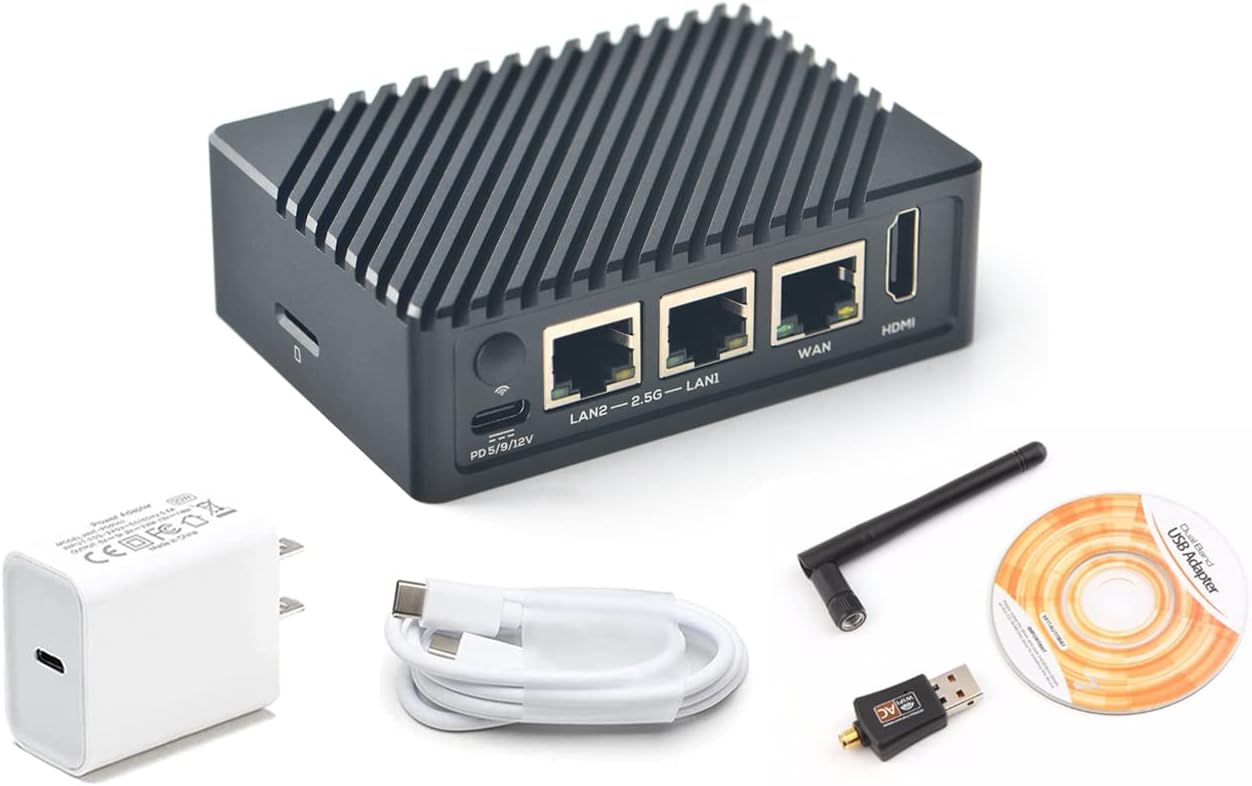

Nanopi R5S Computer Mini Routers OpenWRT with Three Gbps Ethernet Ports LPDDR4X 4GB RAM Mali-G52 GPU Rockchip RK3568 Soc for IOT NAS Smart Home Gateway Support Android FriendlyWrt Docker

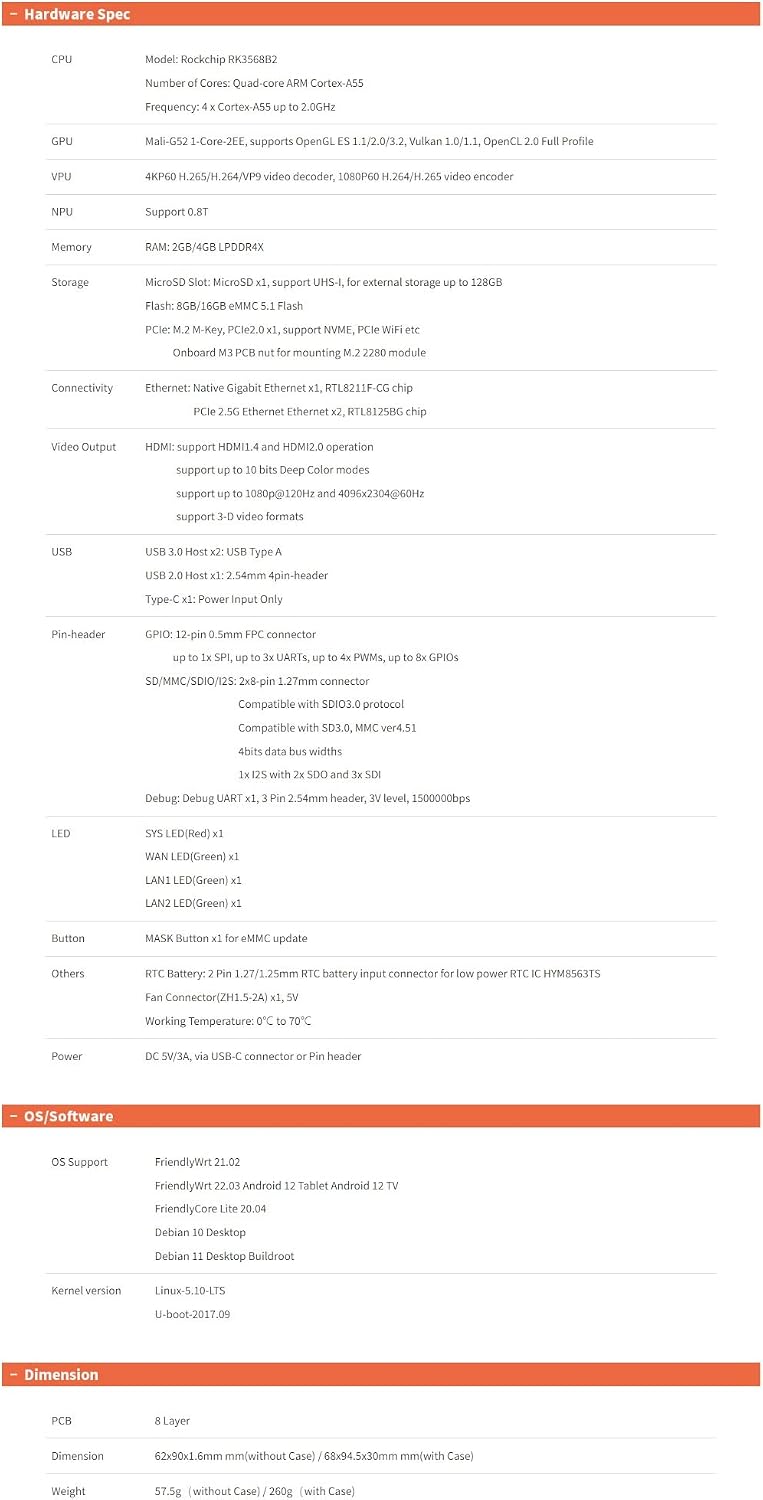

-Specification-

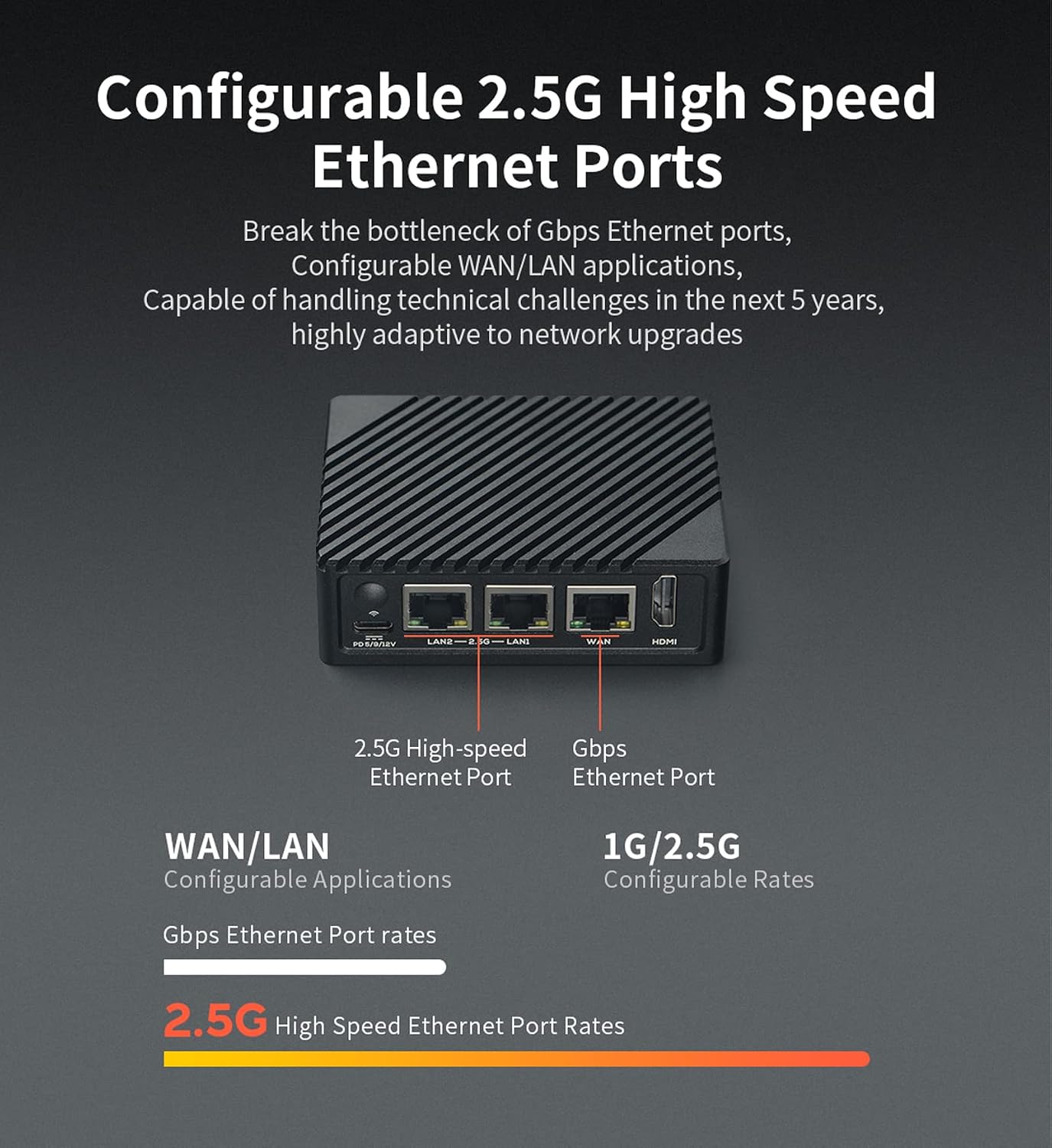

SoC: Rockchip RK3568B2CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHzGPU: Mali-G52 1-Core-2EE，supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full ProfileVPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoderNPU: Support 0.8TRAM: 4GB LPDDR4XFlash: 64GB eMMCEthernet: one Native Gigabit Ethernet, and two PCIe 2.5Gbps EthernetUSB: two USB 3.2 Gen 1 Type-A portsHDMI:support HDMI1.4 and HDMI2.0 operationsupport up to 10 bits Deep Color modessupport up to 1080p@120Hz and 4096x2304@60Hzsupport 3-D video formatsPCIe: M.2 Key M, PCIe2.1 x1, support NVME, PCIe WiFi etcmicroSD: support UHS-IGPIO:12-pin 0.5mm FPC connectorup to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOsSD/MMC/SDIO/I2S:2x8-pin 1.27mm connectorCompatible with SDIO3.0 protocolCompatible with SD3.0, MMC ver4.514bits data bus widths1x I2S with 2x SDO and 3x SDIDebug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bpsLEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)Others:one 5V Fan connectorPower supply: USB-C, support PD, 5V/9V/12V inputAmbient Operating Temperature: 0℃ to 70℃-OS Support-FriendlyWrt 21.02, FriendlyWrt 22.03, FriendlyCore Lite 20.04Android 12 Tablet,Android 12 TVDebian 10 DesktopDebian 11 Desktop BuildrootKernel version: Linux-5.10-LTS, U-boot-2017.09-Package Content-NanoPi R5S LPDDR4X 4GB Mini Router x1 (with CNC Metal Case)USB Wifi Adapter x 120W PD Power x 1PD Fast Charging Line x 1-Technical Support-Please click 'WayPonDEV' and ask a question.Please leave the message monica#smartfire.cn (f------>@) skype: monica_9122.Please leave the message in our forum by forum.youyeetoo.com/.

Additional details

• Color : Quad-core ARM Cortex-A55 CPU, up to 2.0GHz

Features & Specs

• Antenna Location : Business, Gaming, Home, Hotel, Travel
• Antenna Type : Fixed
• Compatible Devices : Personal Computer, TV
• Connectivity Technology : Bluetooth, Ethernet, USB, Wi-Fi
• Control Method : Touch
• Controller Type : Android
• Data Transfer Rate : 941 Megabits Per Second
• Frequency : 2.4 GHz
• Frequency Band Class : Dual-Band
• Is Modem Compatible : No
• LAN Port Bandwidth : 10/100/1000 Mbps
• Maximum Upstream Data Transfer Rate : 941 Megabits Per Second

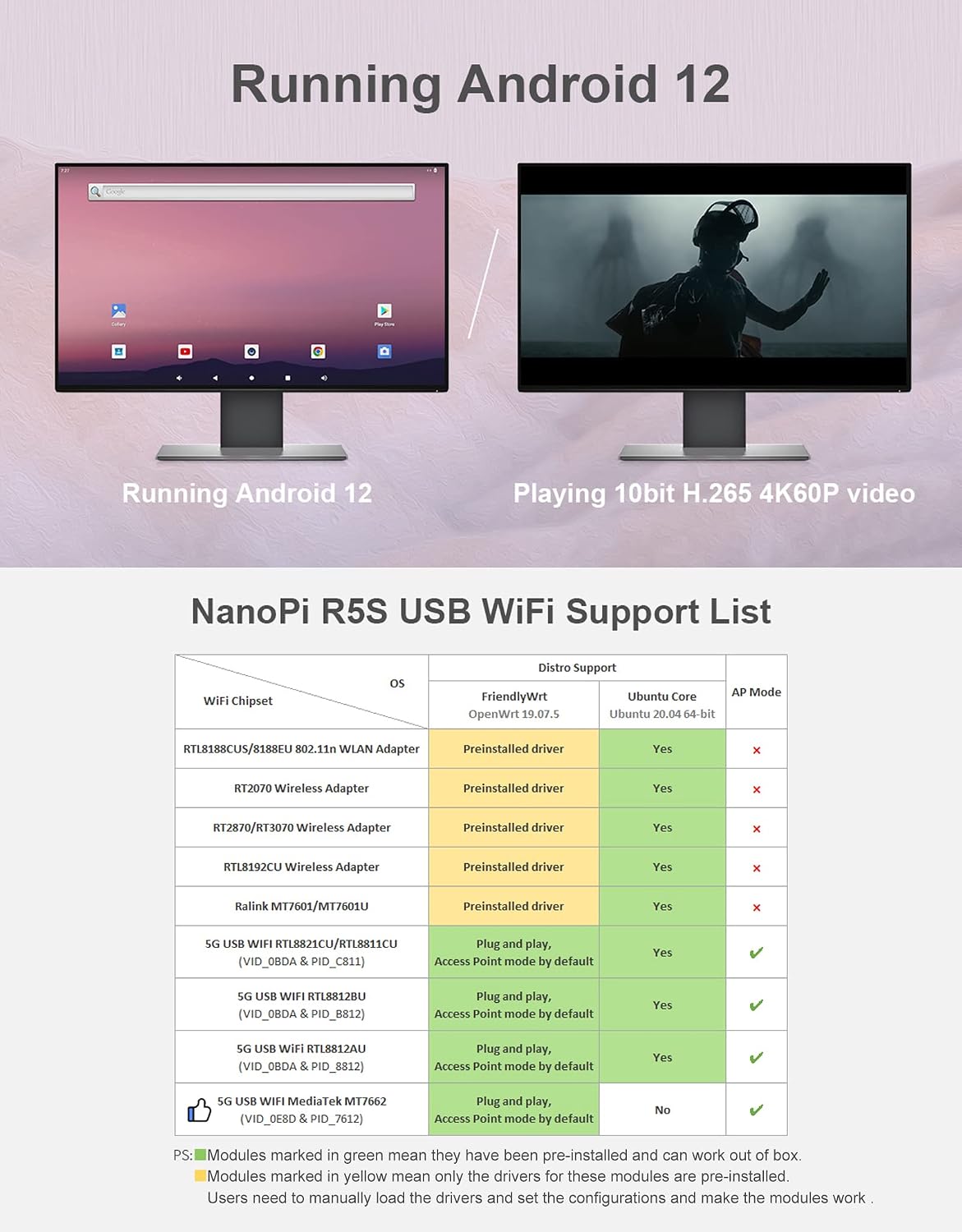

• Operating System : Android 12 Tablet, Android 12 TV, Debian 10 Desktop, Debian 11 Desktop Buildroot, FriendlyCore Lite 20.04, FriendlyWrt 21.02, FriendlyWrt 22.03, Linux-5.10-LTS,U-boot-2017.09
• Other Special Features of the Product : WPS
• RAM Memory Installed : 4 GB
• Security Protocol : WPS
• Voltage : 12 Volts (DC)
• Wireless Compability : 802.11a, 802.11b, 802.11g, 802.11n

Item details

• ASIN : B0C2CTZ4MJ
• Brand : WayPonDEV
• Built-In Media : 20W PD Power, CNC Metal Case, PD Fast Charging Line, USB Wifi Adapter
• Item Type Name : Mini PC, Mini Wifi Router
• Manufacturer : WayPonDEV
• Mfr Part Number : Rockchip RK3568B2
• Model Name : Nanopi R5S Computer Mini Router
• Model Number : 4GB LPDDR4X RAM 64GB eMMC 5.1 Flash
• Warranty Description : WayPonDEV Return Policy: You may return any new computer purchased from WayPonDEV that is 'dead on arrival', arrives damaged, or is still in unopened boxes for the refund within 30 days of purchase. WayPonDEV reserves the right to return ' Dead on Arrival' and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. WayPonDEV will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy.
