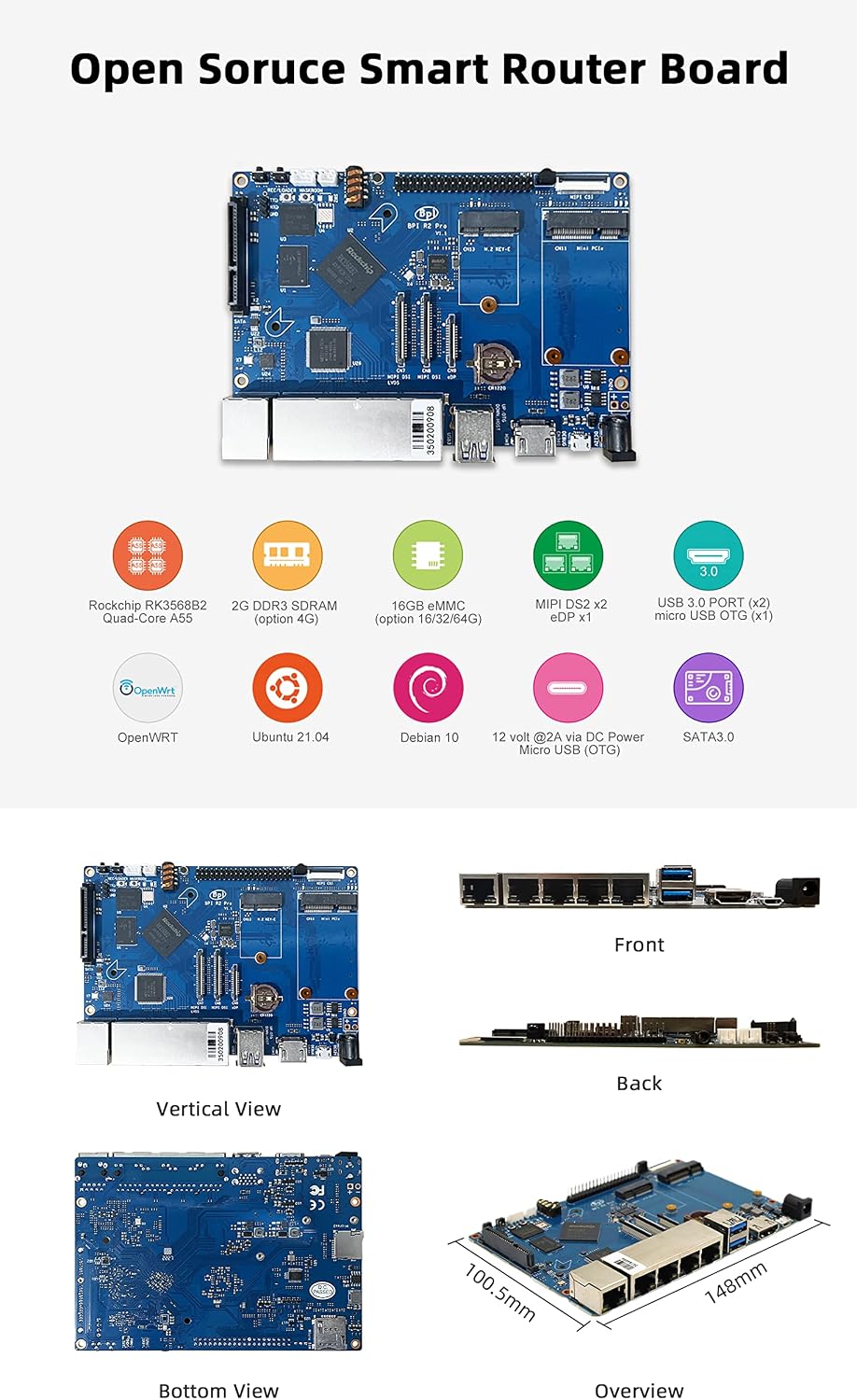

Banana Pi BPI-R2 Pro Open Source 5 Gigabit Port Wireless Smart WiFi Router 2G LPDDR4 and 16G EMMC Developement Based in Linux OpenWRT for NAS VPN Server and DIY Software
Banana Pi BPI-R2 Pro Open Source 5 Gigabit Port Wireless Smart WiFi Router 2G LPDDR4 and 16G EMMC Developement Based in Linux OpenWRT for NAS VPN Server and DIY Software

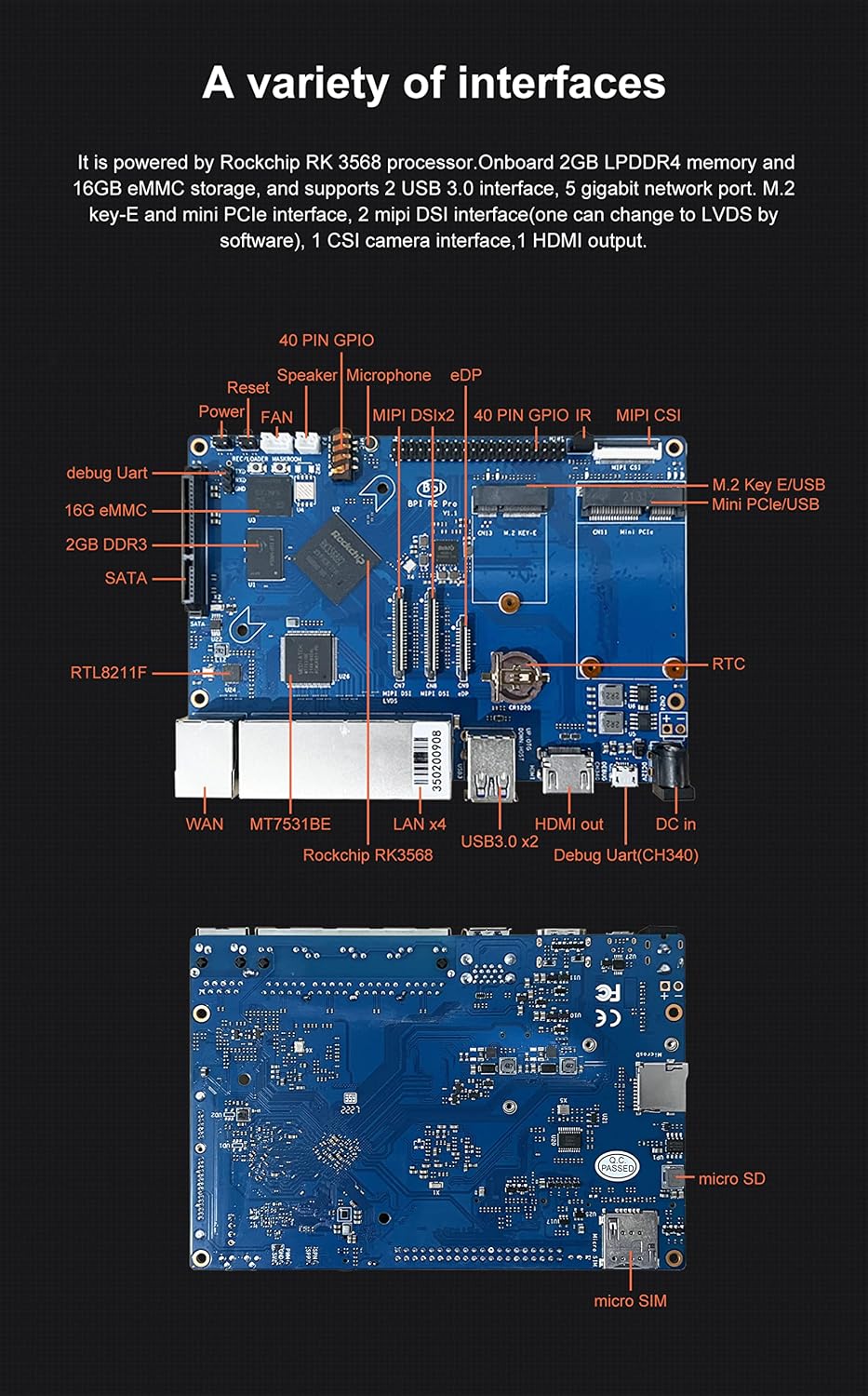

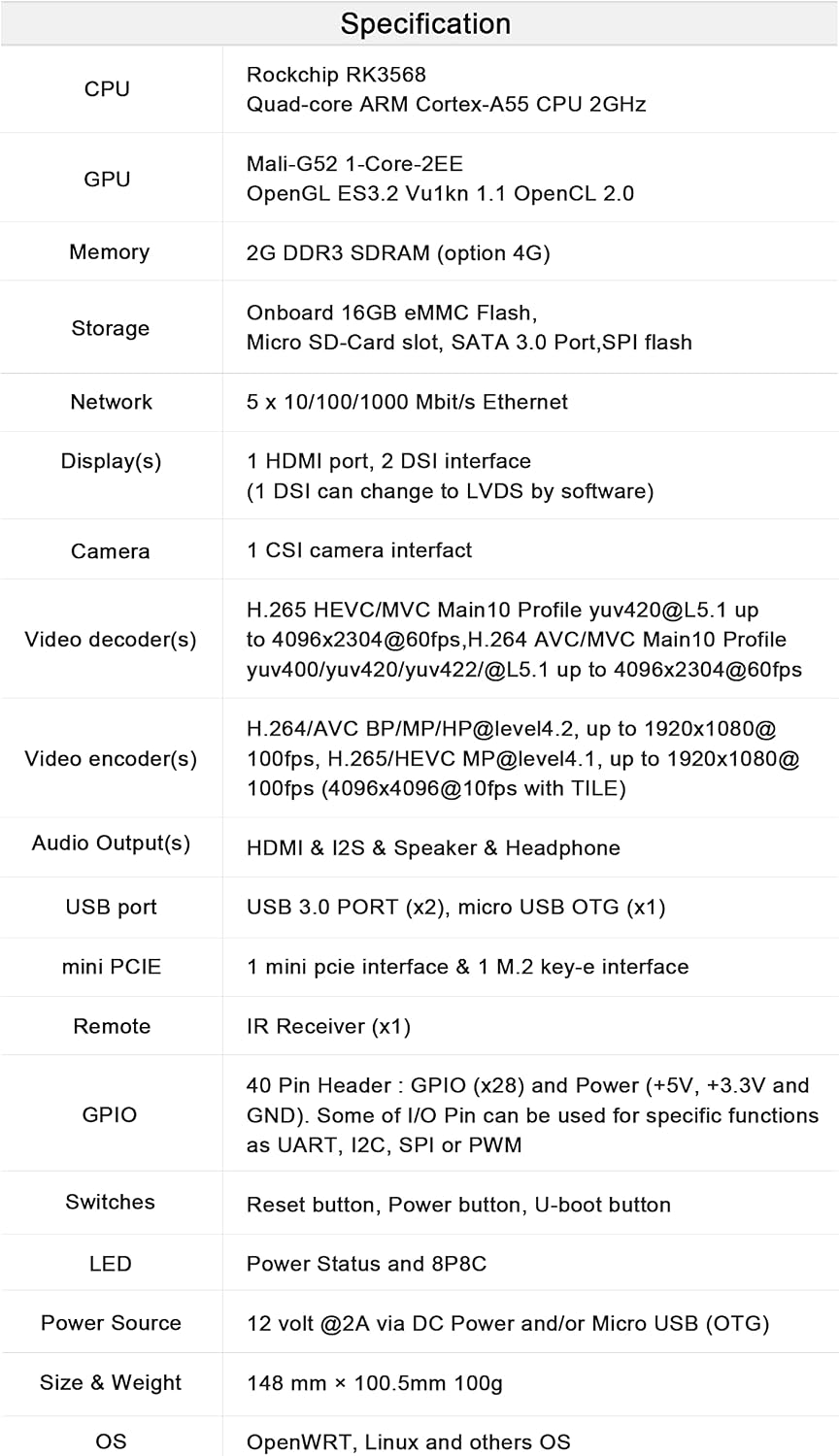

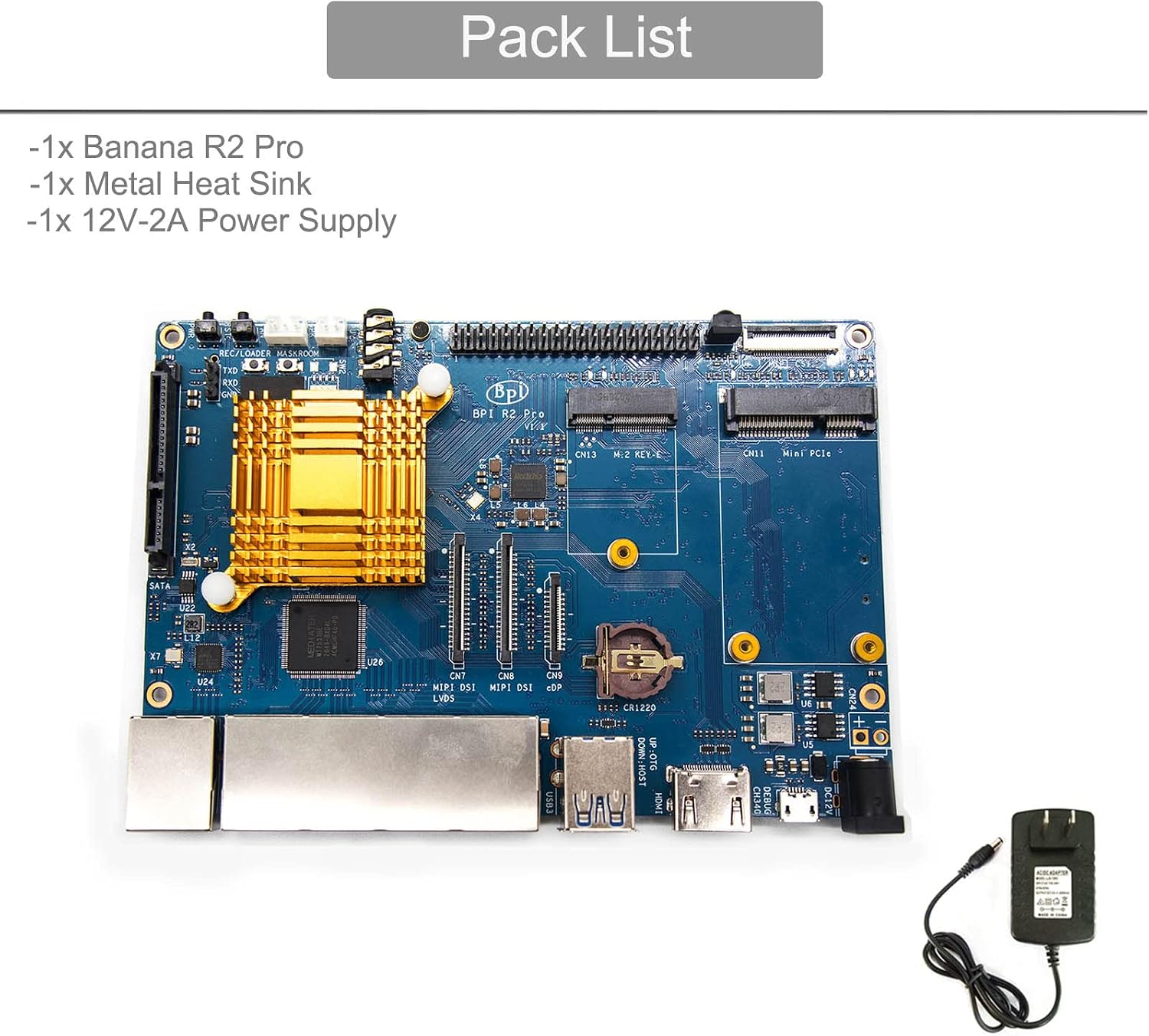

-Description-CPU: Rockchip RK3568 Quad-core ARM Cortex-A55 CPU 2GHzGPU: Mali-G52 1-Core-2EE OpenGL ES3.2 Vu1kn 1.1 OpenCL 2.0Memory：2G DDR3 SDRAM (option 4G)Storage: Onboard 16GB eMMC Flash, Micro SD-Card slot, SATA 2.0 Port,SPI flashNetwork: 5 x 10/100/1000 Mbit/s EthernetAudio: HDMI & I2S & Speaker & HeadphoneVideo decoder(s): H.265 HEVC/MVC Main10 Profile yuv420@L5.1 up to 4096x2304@60fps,H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096x2304@60fpsUSB: USB 3.0 PORT (x2), micro USB OTG (x1)Video encoder(s): H.264/AVC BP/MP/HP@level4.2，up to 1920x1080@100fps, H.265/HEVC MP@level4.1, up to 1920x1080@100fps (4096x4096@10fps with TILE)GPIO: 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWMPower Source: 12 volt @2A via DC Power and/or Micro USB (OTG)MINI PCIE: 1 mini pcie interface & 1 M.2 key-e interfaceSize:148 mm × 100.5mm 100gWeight:100g-OS/Software-OS SupportOpenWRT, ,Android, Ubuntu, Debian,Linux-Package Includes-1 x Banana Pi R2 Pro Development Board
Features & Specs
- Connectivity Technology : Bluetooth, Ethernet, USB, Wi-Fi
- Memory Storage Capacity : 16 GB

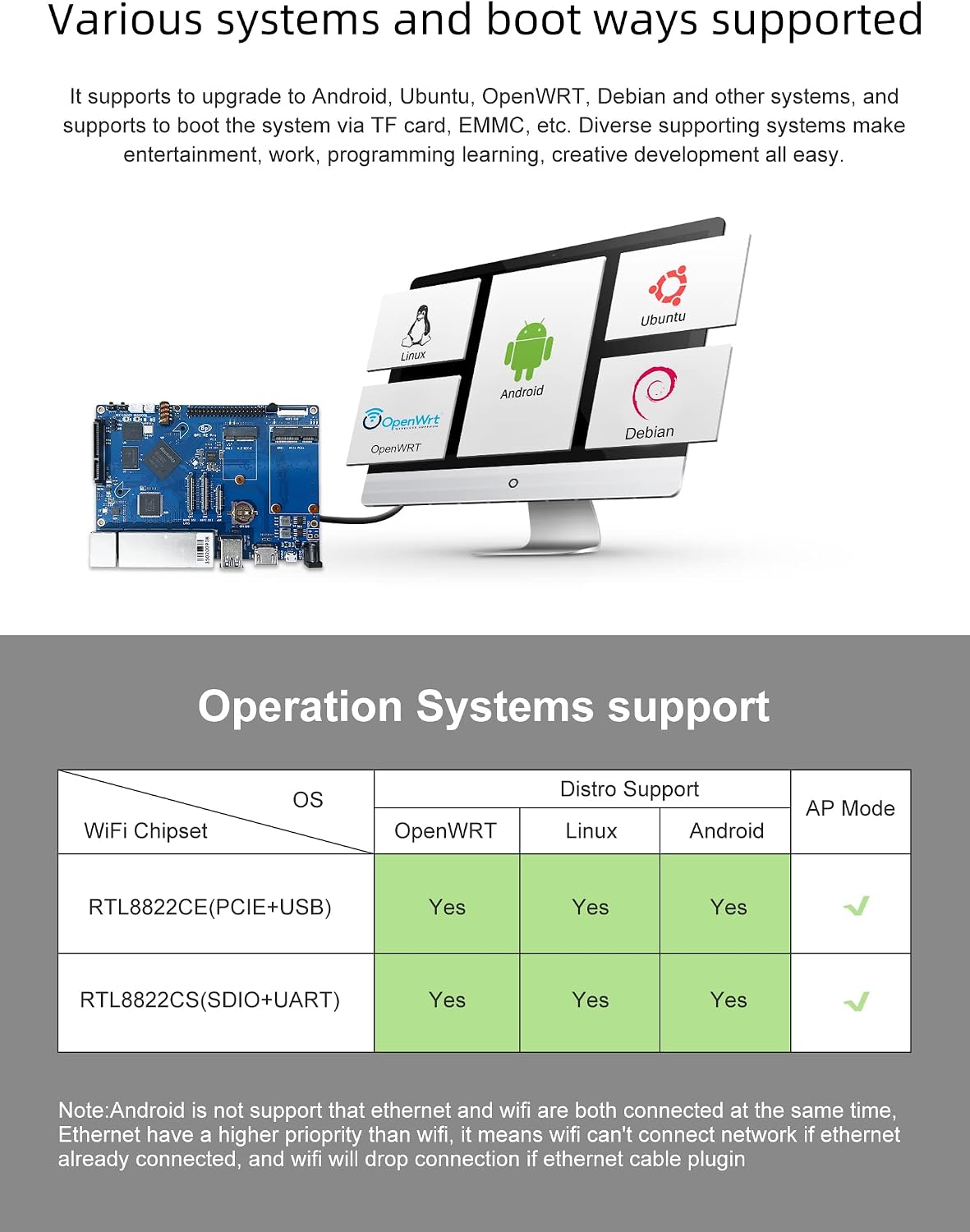

- Operating System : Debian, Linux, Ubuntu
- Processor Brand : Rockchip RK3568
- Processor Count : 4
- RAM Memory Installed : 2 GB
- RAM Memory Technology : LPDDR4
- Total Usb Ports : 4
- Wireless Compability : 2.4 GHz Radio Frequency, 5 GHz Radio Frequency, 802.11a/b/g/n/ac
Item details
- ASIN : B0B3LVPS5V
- Brand : WayPonDEV
- Manufacturer : WayPonDEV
- Mfr Part Number : Rockchip RK3568

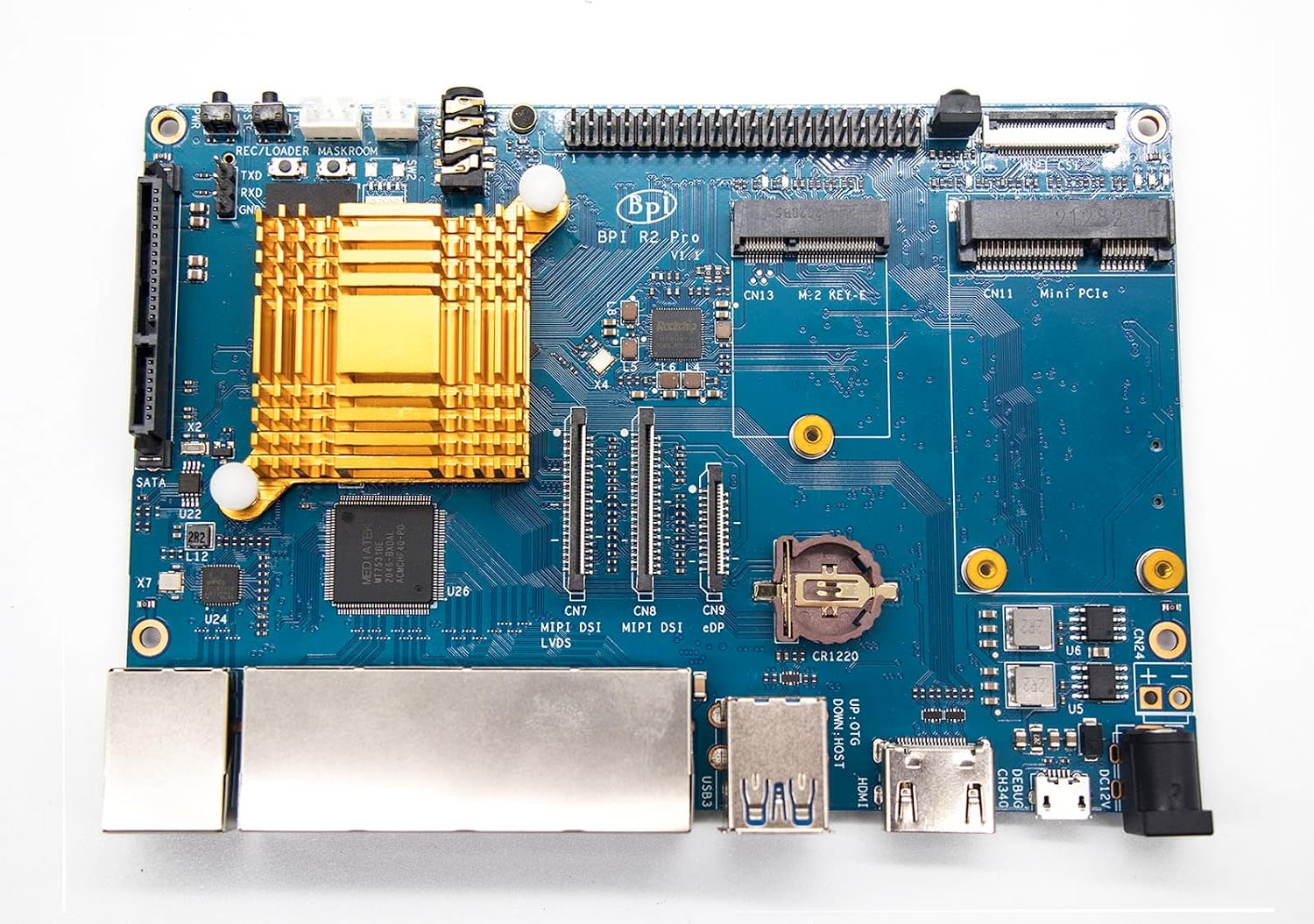

- Model Number : Banana Pi R2 Pro
